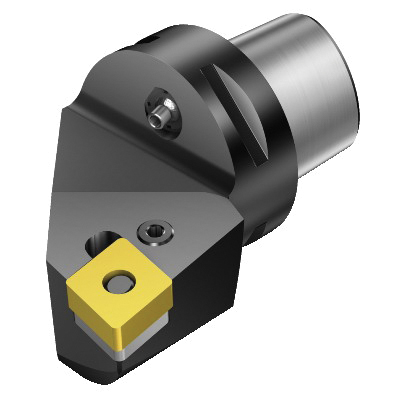

Sandvik Coromant 5728201 T-Max® P Turning Cutting Unit, 1.9685 in, 2.9133 in OAL, Left Hand, CNMG 120408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5728201 T-Max® P Turning Cutting Unit, 1.9685 in, 2.9133 in OAL, Left Hand, CNMG 120408 Insert
SKU513537
MFGR #5728201
Your Cost: $407.68/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 1.9685 in Head Length/Projection, 2.9133 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 120408, Left Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 1.9685 in Head Length/Projection, 2.9133 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 120408, Left Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-PCLNL-27050-12 Catalog Number 5728201 Center to Cutting Height 40mm Country of Origin SE Finish T-Max® P Gross Weight Per Pack 1.0100 lb Head Length|Projection 1.9685 in Insert Style C-80 deg Diamond Item Group 410 Master Insert CNMG 12 04 08 Material Steel Overall Length 2.9133 in Series T-Max® P Torque Newton Meters 5 Type -6 UPC 11 69826237575 UPC 12 69826237575 Warranty 0.500 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.0629 in Cutting Direction Left Hand Insert Compatibility CNMG 120408 Insert Holding Method Steel Internal or External External Number of Inserts C-80 deg Diamond System Size C4 0 deg body machine side 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 10 bar coolant Lever hole clamping Decentral coolant exit with nozzles, adjustable 40 mm Dia connection 95 deg cutting edge -6 deg inclination 0 deg ramping 5 Nm torque 1/2 in insert seat size 50 mm maximum overhang -5 deg lead -6 deg rake Bolt and segment clamping adaptive interface ANSI Code: C4-PCLNL-27050-12 ISO Code: C4-PCLNL-27050-12
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C4-PCLNL-27050-12 |
| Catalog Number | 5728201 |
| Center to Cutting Height | 40mm |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 1.0100 lb |
| Head Length|Projection | 1.9685 in |
| Insert Style | C-80 deg Diamond |
| Item Group | 410 |
| Master Insert | CNMG 12 04 08 |
| Material | Steel |
| Overall Length | 2.9133 in |
| Series | T-Max® P |
| Torque Newton Meters | 5 |
| Type | -6 |
| UPC 11 | 69826237575 |
| UPC 12 | 69826237575 |
| Warranty | 0.500 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.0629 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | CNMG 120408 |
| Insert Holding Method | Steel |
| Internal or External | External |
| Number of Inserts | C-80 deg Diamond |
| System Size | C4 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Lever hole clamping |
| Decentral coolant exit with nozzles, adjustable |
| 40 mm Dia connection |
| 95 deg cutting edge |
| -6 deg inclination |
| 0 deg ramping |
| 5 Nm torque |
| 1/2 in insert seat size |
| 50 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C4-PCLNL-27050-12 |
| ISO Code: C4-PCLNL-27050-12 |
