Sandvik Coromant

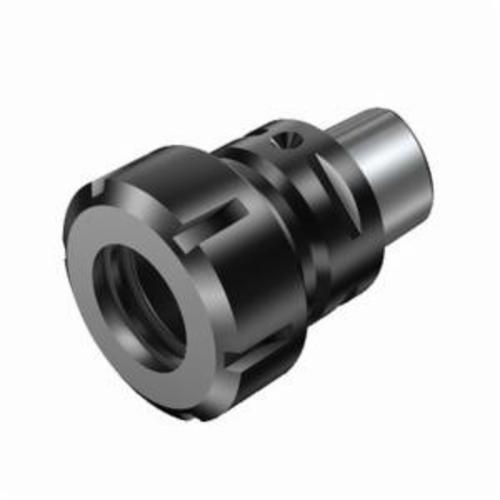

Sandvik Coromant 5728004, 1.2992 x 1.5748 in Shank Connection, Coromant® Capto® x ER Collet Chuck Shank, C4 Taper, 0.5511 in Hole, 2.7559 in Projection
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5728004, 1.2992 x 1.5748 in Shank Connection, Coromant® Capto® x ER Collet Chuck Shank, C4 Taper, 0.5511 in Hole, 2.7559 in Projection
SKU355374
MFGR #5728004
Your Cost: $569.12/ea
Sandvik Coromant Adapter, 0.5511 in Hole Dia, Coromant® Capto® x ER Collet Chuck Shank, C4 Taper, 2.7559 in Projection, 4.6456 in Overall Length, 1.9685 in Overall Dia, 1.2992 x 1.5748 in Shank Connection, ANSI Code: C4-391.14-32 054, ISO Code: C4-391.14-32 054
Sandvik Coromant Adapter, 0.5511 in Hole Dia, Coromant® Capto® x ER Collet Chuck Shank, C4 Taper, 2.7559 in Projection, 4.6456 in Overall Length, 1.9685 in Overall Dia, 1.2992 x 1.5748 in Shank Connection, ANSI Code: C4-391.14-32 054, ISO Code: C4-391.14-32 054
Alternate Catalog Number C4-391.14-32 054 Catalog Number 5728004 Country of Origin SE Gross Weight Per Pack 1.1000 lb Hole Diameter 0.5511 in Item Group 530 Nose Diameter 78 mm Overall Length 4.6456 in Shank Type Coromant® Capto® x ER Collet Chuck Taper Size C4 Type 5763406 Locking Nut and 5764195 Wrench UPC 11 69826250385 UPC 12 69826250385 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Projection 2.7559 in 0 deg body half taper Axial concentric and radial coolant entry 80 bar coolant Axial concentric coolant exit 54 mm L body 39000 r/min Cx-391.14 (1) tool style Steel body 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C4-391.14-32 054 |
| Catalog Number | 5728004 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.1000 lb |
| Hole Diameter | 0.5511 in |
| Item Group | 530 |
| Nose Diameter | 78 mm |
| Overall Length | 4.6456 in |
| Shank Type | Coromant® Capto® x ER Collet Chuck |
| Taper Size | C4 |
| Type | 5763406 Locking Nut and 5764195 Wrench |
| UPC 11 | 69826250385 |
| UPC 12 | 69826250385 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Projection | 2.7559 in |
| 0 deg body half taper |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Axial concentric coolant exit |
| 54 mm L body |
| 39000 r/min |
| Cx-391.14 (1) tool style |
| Steel body |
| 20 life cycle state |
