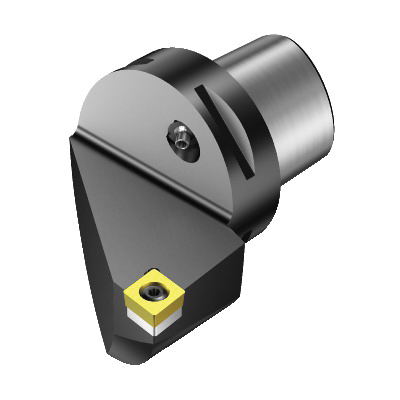

Sandvik Coromant 5727905 CoroTurn® 107 Turning Cutting Unit, 1.9685 in, 2.9133 in OAL, Left Hand, CCMT 09T308 Insert
Modular Turning/Profiling Cutting Heads
439051
MFG #: 5727905
Sandvik Coromant
332.62000
/ ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 1.9685 in Head Length/Projection, 2.9133 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CCMT 09T308, Left Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| Decentral coolant exit with nozzles, adjustable |
| 40 mm Dia connection |
| 95 deg cutting edge |
| 0 deg inclination |
| 0 deg ramping |
| 3 Nm torque |
| 3/8 in insert seat size |
| 0.1563 in THK insert |
| -5 deg cutting edge |
| 50 mm maximum overhang |
| -5 deg lead |
| 0 deg positive rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C4-SCLCL-27050-09 |
