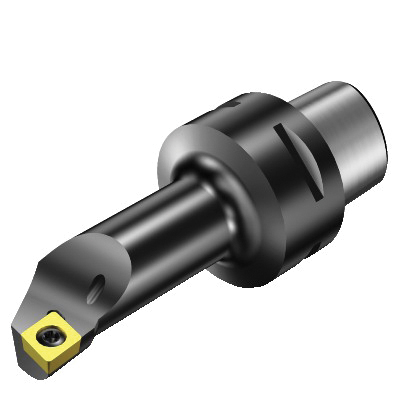

Sandvik Coromant 5727899 CoroTurn® 107 Turning Cutting Unit, 3.1496 in, 4.0944 in OAL, Left Hand, CCMT 09T308 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5727899 CoroTurn® 107 Turning Cutting Unit, 3.1496 in, 4.0944 in OAL, Left Hand, CCMT 09T308 Insert
SKU473543
MFGR #5727899
Your Cost: $540.09/ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 3.1496 in Head Length/Projection, 4.0944 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CCMT 09T308, Left Hand Cutting, 0.5118 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 3.1496 in Head Length/Projection, 4.0944 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CCMT 09T308, Left Hand Cutting, 0.5118 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-SCLCL-13080-09 Catalog Number 5727899 Center to Cutting Height 20mm Country of Origin SE Finish CoroTurn® 107 Gross Weight Per Pack 1.1000 lb Head Length|Projection 3.1496 in IC 0 Insert Style C-80 deg Diamond Item Group 410 Master Insert CCMT 09 T3 08 Material Steel Overall Length 4.0944 in Series CoroTurn® 107 Torque Newton Meters 3 Type Left Hand UPC 11 69826237463 UPC 12 69826237463 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.5118 in Cutting Direction Left Hand Insert Compatibility CCMT 09T308 Insert Holding Method Steel Internal or External Internal Number of Inserts CCMT 09T308 System Size C4 0 deg body machine side 20 life cycle state 0 deg body workpiece side 20 mm Dia body Axial concentric and radial coolant entry 10 bar coolant 40 - 60 deg insert screw clamping Axial inclined coolant exit 40 mm Dia connection 25 mm Dia minimum bore 95 deg cutting edge -5.7497 deg inclination 57 mm L usable 0 deg ramping 3 Nm torque 3/8 in insert seat size 0.1563 in THK insert -5 deg cutting edge 80 mm maximum overhang -5 deg lead
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C4-SCLCL-13080-09 |
| Catalog Number | 5727899 |
| Center to Cutting Height | 20mm |
| Country of Origin | SE |
| Finish | CoroTurn® 107 |
| Gross Weight Per Pack | 1.1000 lb |
| Head Length|Projection | 3.1496 in |
| IC | 0 |
| Insert Style | C-80 deg Diamond |
| Item Group | 410 |
| Master Insert | CCMT 09 T3 08 |
| Material | Steel |
| Overall Length | 4.0944 in |
| Series | CoroTurn® 107 |
| Torque Newton Meters | 3 |
| Type | Left Hand |
| UPC 11 | 69826237463 |
| UPC 12 | 69826237463 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.5118 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | CCMT 09T308 |
| Insert Holding Method | Steel |
| Internal or External | Internal |
| Number of Inserts | CCMT 09T308 |
| System Size | C4 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 20 mm Dia body |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| Axial inclined coolant exit |
| 40 mm Dia connection |
| 25 mm Dia minimum bore |
| 95 deg cutting edge |
| -5.7497 deg inclination |
| 57 mm L usable |
| 0 deg ramping |
| 3 Nm torque |
| 3/8 in insert seat size |
| 0.1563 in THK insert |
| -5 deg cutting edge |
| 80 mm maximum overhang |
| -5 deg lead |
