Sandvik Coromant

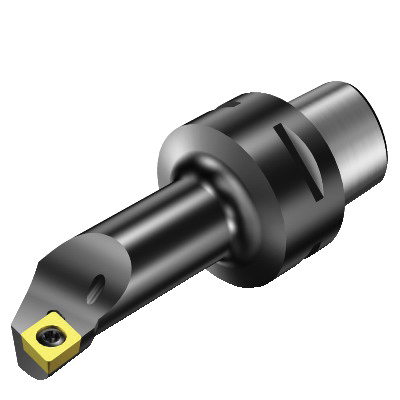

Sandvik Coromant 5727878 CoroTurn® 107 Turning Cutting Unit, 2.7559 in, 3.7007 in OAL, Left Hand, CCMT 09T308 Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5727878 CoroTurn® 107 Turning Cutting Unit, 2.7559 in, 3.7007 in OAL, Left Hand, CCMT 09T308 Insert
SKU439048
MFGR #5727878
Your Cost: $540.09/ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 2.7559 in Head Length/Projection, 3.7007 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CCMT 09T308, Left Hand Cutting, 0.433 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 2.7559 in Head Length/Projection, 3.7007 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CCMT 09T308, Left Hand Cutting, 0.433 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-SCLCL-11070-09 Catalog Number 5727878 Center to Cutting Height 16mm Country of Origin SE Finish CoroTurn® 107 Gross Weight Per Pack 1.1000 lb Head Length|Projection 2.7559 in IC 0 Includes 0 Insert Style C-80 deg Diamond Item Group 410 Master Insert CCMT 09 T3 08 Material Steel Overall Length 3.7007 in Series CoroTurn® 107 Torque Newton Meters 3 Type 70 mm UPC 11 69826238735 UPC 12 69826238735 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.433 in Cutting Direction Left Hand Insert Compatibility CCMT 09T308 Insert Holding Method 400 Internal or External Internal Number of Inserts CoroTurn® 107 System Size C4 0 deg body machine side 20 life cycle state 0 deg body workpiece side 16 mm Dia body Axial concentric and radial coolant entry 10 bar coolant 40 - 60 deg insert screw clamping Axial inclined coolant exit 40 mm Dia connection 20 mm Dia minimum bore 95 deg cutting edge -8.3967 deg inclination 47 mm L usable 0 deg ramping 3 Nm torque 3/8 in insert seat size 0.1563 in THK insert -5 deg cutting edge 70 mm maximum overhang -5 deg lead
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C4-SCLCL-11070-09 |
| Catalog Number | 5727878 |
| Center to Cutting Height | 16mm |
| Country of Origin | SE |
| Finish | CoroTurn® 107 |
| Gross Weight Per Pack | 1.1000 lb |
| Head Length|Projection | 2.7559 in |
| IC | 0 |
| Includes | 0 |
| Insert Style | C-80 deg Diamond |
| Item Group | 410 |
| Master Insert | CCMT 09 T3 08 |
| Material | Steel |
| Overall Length | 3.7007 in |
| Series | CoroTurn® 107 |
| Torque Newton Meters | 3 |
| Type | 70 mm |
| UPC 11 | 69826238735 |
| UPC 12 | 69826238735 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.433 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | CCMT 09T308 |
| Insert Holding Method | 400 |
| Internal or External | Internal |
| Number of Inserts | CoroTurn® 107 |
| System Size | C4 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 16 mm Dia body |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| Axial inclined coolant exit |
| 40 mm Dia connection |
| 20 mm Dia minimum bore |
| 95 deg cutting edge |
| -8.3967 deg inclination |
| 47 mm L usable |
| 0 deg ramping |
| 3 Nm torque |
| 3/8 in insert seat size |
| 0.1563 in THK insert |
| -5 deg cutting edge |
| 70 mm maximum overhang |
| -5 deg lead |
