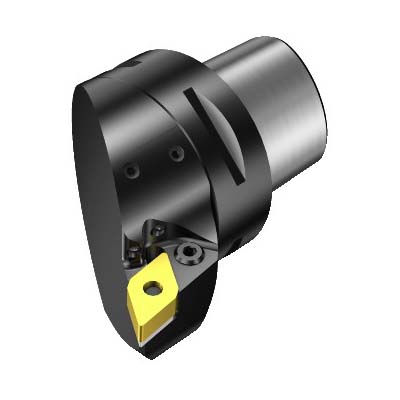

Sandvik Coromant 5727827 T-Max® P Turning Cutting Unit, 2.1653 in, 3.1102 in OAL, Left Hand, DNMG 150608 Insert
Modular Turning/Profiling Cutting Heads
467964
MFG #: 5727827
Sandvik Coromant
506.47000
/ ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 2.1653 in Head Length/Projection, 3.1102 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 150608, Left Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 40 mm Dia connection |
| 65 - 145 mm Dia minimum bore |
| 93 deg cutting edge |
| -7 deg inclination |
| 27 deg ramping |
| 5 Nm torque |
| 1/2 in insert seat size |
| 55 mm maximum overhang |
| -3 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C4-PDJNL-27055-15HP |
| ISO Code: C4-PDJNL-27055-15HP |
