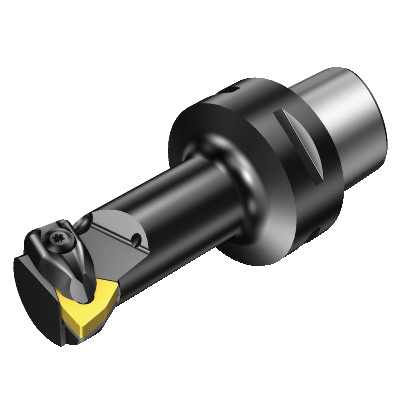

Sandvik Coromant 5727692 T-Max® P Turning Cutting Unit, 3.5433 in, 4.4881 in OAL, Right Hand, WNMG 080408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5727692 T-Max® P Turning Cutting Unit, 3.5433 in, 4.4881 in OAL, Right Hand, WNMG 080408 Insert
SKU1047379
MFGR #5727692
Your Cost: $540.09/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.5433 in Head Length/Projection, 4.4881 in Overall Length, W-Trigon Insert, Insert Compatibility: WNMG 080408, Right Hand Cutting, 0.6692 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.5433 in Head Length/Projection, 4.4881 in Overall Length, W-Trigon Insert, Insert Compatibility: WNMG 080408, Right Hand Cutting, 0.6692 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-DWLNR-17090-08 Catalog Number 5727692 Center to Cutting Height 25mm Country of Origin SE Finish 400 Gross Weight Per Pack 1.0100 lb Head Length|Projection 3.5433 in IC 0 Insert Style W-Trigon Item Group 410 Master Insert WNMG 08 04 08 Material Steel Overall Length 4.4881 in Series T-Max® P Torque Newton Meters 4 Type 114 mm UPC 11 69826242062 UPC 12 69826242062 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.6692 in Cutting Direction Right Hand Insert Compatibility WNMG 080408 Insert Holding Method -6 Internal or External Internal Number of Inserts T-Max® P System Size C4 0 deg body machine side 20 life cycle state 0 deg body workpiece side 25 mm Dia body Axial concentric and radial coolant entry 10 bar coolant Floating wedge, RC hole Axial inclined coolant exit with nozzle, adjustable 40 mm Dia connection 33 mm Dia minimum bore 95 deg cutting edge -12 deg inclination 68 mm L usable 0 deg ramping 3.9 Nm torque 1/2 in insert seat size 90 mm maximum overhang -5 deg lead -6 deg rake Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C4-DWLNR-17090-08 |
| Catalog Number | 5727692 |
| Center to Cutting Height | 25mm |
| Country of Origin | SE |
| Finish | 400 |
| Gross Weight Per Pack | 1.0100 lb |
| Head Length|Projection | 3.5433 in |
| IC | 0 |
| Insert Style | W-Trigon |
| Item Group | 410 |
| Master Insert | WNMG 08 04 08 |
| Material | Steel |
| Overall Length | 4.4881 in |
| Series | T-Max® P |
| Torque Newton Meters | 4 |
| Type | 114 mm |
| UPC 11 | 69826242062 |
| UPC 12 | 69826242062 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.6692 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | WNMG 080408 |
| Insert Holding Method | -6 |
| Internal or External | Internal |
| Number of Inserts | T-Max® P |
| System Size | C4 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 25 mm Dia body |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Floating wedge, RC hole |
| Axial inclined coolant exit with nozzle, adjustable |
| 40 mm Dia connection |
| 33 mm Dia minimum bore |
| 95 deg cutting edge |
| -12 deg inclination |
| 68 mm L usable |
| 0 deg ramping |
| 3.9 Nm torque |
| 1/2 in insert seat size |
| 90 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
