Sandvik Coromant

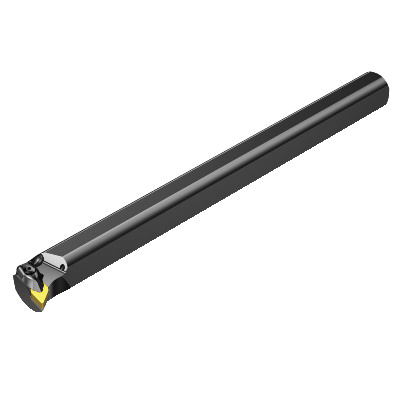

Sandvik Coromant 5727612 T-Max® P Boring Bar, 2 in Min, 12 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5727612 T-Max® P Boring Bar, 2 in Min, 12 in OAL, Right Hand
SKU1173603
MFGR #5727612
Your Cost: $542.41/ea
Sandvik Coromant Boring Bar, Series: T-Max® P, 2 in Minimum Bore Dia, 12 in Overall Length, 1-1/2 in Shank Dia, Right Hand Cutting, Insert Compatibility: DNMG 15 06 08, D-55 deg Diamond Insert, Steel
Sandvik Coromant Boring Bar, Series: T-Max® P, 2 in Minimum Bore Dia, 12 in Overall Length, 1-1/2 in Shank Dia, Right Hand Cutting, Insert Compatibility: DNMG 15 06 08, D-55 deg Diamond Insert, Steel
Alternate Catalog Number A24T-DDUNR 4 Catalog Number 5727612 Country of Origin SE Gross Weight Per Pack 5.3100 lb Inscribed Circle 1/2 Insert Thickness 1/4 in Item Group 410 Overall Length 12 in Series T-Max® P Shank Type Cylindrical with 3-Flats Toolholder Style A..DDUNR Toolholder Type A..DDUNR UPC 11 69826241854 UPC 12 69826241854 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Right Insert Compatibility DNMG 15 06 08 Insert Shape 55 deg Diamond Material Steel Maximum Bore Depth 6 in Minimum Bore Diameter 2 in Shank Diameter 1-1/2 in Through Coolant Yes Stable and secure clamping|Chip control and process security|Excellent surface finish Cylindrical shank with 3 flats adaptive interface 0 deg body at machine side and workpiece side 38.1 mm Dia body Axial concentric coolant entry 10 bar coolant Floating wedge, RC hole interface Axial inclined coolant exit -6 deg orthogonal rake 34.9 mm H shank 93 deg cutting edge -11 deg inclination 304.8 mm L functional 57.15 - 152.4 mm overhang -3 deg lead 27 deg maximum ramping 3.9 Nm torque A..DDUNR/L style 28.575 mm W functional 9.525 mm W usable
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | A24T-DDUNR 4 |
| Catalog Number | 5727612 |
| Country of Origin | SE |
| Gross Weight Per Pack | 5.3100 lb |
| Inscribed Circle | 1/2 |
| Insert Thickness | 1/4 in |
| Item Group | 410 |
| Overall Length | 12 in |
| Series | T-Max® P |
| Shank Type | Cylindrical with 3-Flats |
| Toolholder Style | A..DDUNR |
| Toolholder Type | A..DDUNR |
| UPC 11 | 69826241854 |
| UPC 12 | 69826241854 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Right |
| Insert Compatibility | DNMG 15 06 08 |
| Insert Shape | 55 deg Diamond |
| Material | Steel |
| Maximum Bore Depth | 6 in |
| Minimum Bore Diameter | 2 in |
| Shank Diameter | 1-1/2 in |
| Through Coolant | Yes |
| Stable and secure clamping|Chip control and process security|Excellent surface finish |
| Cylindrical shank with 3 flats adaptive interface |
| 0 deg body at machine side and workpiece side |
| 38.1 mm Dia body |
| Axial concentric coolant entry |
| 10 bar coolant |
| Floating wedge, RC hole interface |
| Axial inclined coolant exit |
| -6 deg orthogonal rake |
| 34.9 mm H shank |
| 93 deg cutting edge |
| -11 deg inclination |
| 304.8 mm L functional |
| 57.15 - 152.4 mm overhang |
| -3 deg lead |
| 27 deg maximum ramping |
| 3.9 Nm torque |
| A..DDUNR/L style |
| 28.575 mm W functional |
| 9.525 mm W usable |
