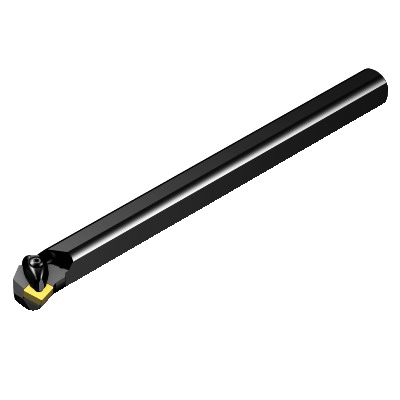

Sandvik Coromant 5727601 T-Max® P Boring Bar, 1.28 in Min, 12 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5727601 T-Max® P Boring Bar, 1.28 in Min, 12 in OAL, Right Hand
SKU80374
MFGR #5727601
Your Cost: $464.59/ea
Sandvik Coromant Boring Bar, Series: T-Max® P, 1.28 in Minimum Bore Dia, 12 in Overall Length, 1 in Shank Dia, Right Hand Cutting, Insert Compatibility: CNMG 12 04 08, C-80 deg Diamond Insert, Steel
Sandvik Coromant Boring Bar, Series: T-Max® P, 1.28 in Minimum Bore Dia, 12 in Overall Length, 1 in Shank Dia, Right Hand Cutting, Insert Compatibility: CNMG 12 04 08, C-80 deg Diamond Insert, Steel
Alternate Catalog Number A16T-DCLNR 4 Catalog Number 5727601 Country of Origin SE Gross Weight Per Pack 2.3500 lb Inscribed Circle 1/2 Insert Thickness 0.187 in Item Group 410 Overall Length 12 in Series T-Max® P Shank Type Cylindrical With 3-Flats Toolholder Style A..DCLNR Toolholder Type A..DCLNR UPC 11 69826213968 UPC 12 69826213968 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Right Insert Compatibility CNMG 12 04 08 Insert Shape 80 deg Diamond Material Steel Maximum Bore Depth 4 in Minimum Bore Diameter 1.28 in Shank Diameter 1 in Through Coolant Yes Stable and secure clamping|Chip control and process security|Excellent surface finish Cylindrical shank with 3 flats adaptive interface 0 deg body at machine side and workpiece side 25.4 mm Dia body Axial concentric coolant entry 10 bar coolant Floating wedge, RC hole interface Axial inclined coolant exit -6 deg orthogonal rake 23 mm H shank 95 deg cutting edge -12 deg inclination 304.8 mm L functional 38.1 - 101.6 mm overhang -5 deg lead 0 deg maximum ramping 3.9 Nm torque A..DCLNR/L style 16.256 mm W functional ANSI Code: A16T-DCLNR 4
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | A16T-DCLNR 4 |
| Catalog Number | 5727601 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.3500 lb |
| Inscribed Circle | 1/2 |
| Insert Thickness | 0.187 in |
| Item Group | 410 |
| Overall Length | 12 in |
| Series | T-Max® P |
| Shank Type | Cylindrical With 3-Flats |
| Toolholder Style | A..DCLNR |
| Toolholder Type | A..DCLNR |
| UPC 11 | 69826213968 |
| UPC 12 | 69826213968 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Right |
| Insert Compatibility | CNMG 12 04 08 |
| Insert Shape | 80 deg Diamond |
| Material | Steel |
| Maximum Bore Depth | 4 in |
| Minimum Bore Diameter | 1.28 in |
| Shank Diameter | 1 in |
| Through Coolant | Yes |
| Stable and secure clamping|Chip control and process security|Excellent surface finish |
| Cylindrical shank with 3 flats adaptive interface |
| 0 deg body at machine side and workpiece side |
| 25.4 mm Dia body |
| Axial concentric coolant entry |
| 10 bar coolant |
| Floating wedge, RC hole interface |
| Axial inclined coolant exit |
| -6 deg orthogonal rake |
| 23 mm H shank |
| 95 deg cutting edge |
| -12 deg inclination |
| 304.8 mm L functional |
| 38.1 - 101.6 mm overhang |
| -5 deg lead |
| 0 deg maximum ramping |
| 3.9 Nm torque |
| A..DCLNR/L style |
| 16.256 mm W functional |
| ANSI Code: A16T-DCLNR 4 |
