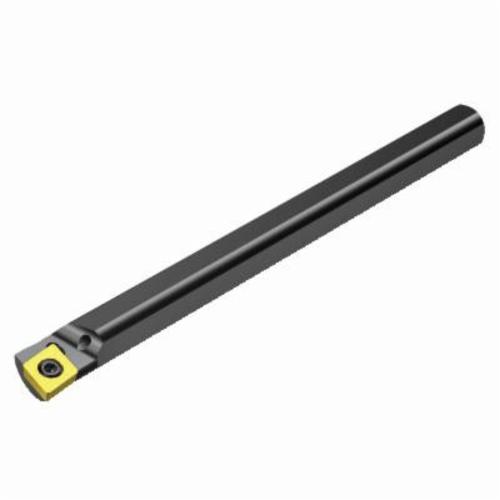

Sandvik Coromant 5727595 CoroTurn® 107 Indexable Boring Bar, 1.2007 in Min, 12 in OAL, Left Hand
Indexable Boring Bars
461161
MFG #: 5727595
Sandvik Coromant
260.53000
/ ea
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 1.2007 in Minimum Bore Dia, 4 in Maximum Bore Depth, 12 in Overall Length, 1 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: CCMT 09 T3 08 (MIIDM), CCMT 3(2.5)2 (MIIDN), C-80 deg Diamond Insert, 3/8 in Insert Inscribed Circle, 0.156 in Insert Thickness, 0.64 in Width Offset, Steel
- Features
| Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain|Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control|When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107|The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish|Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 23.02 mm H shank |
| 0 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 95 deg cutting edge |
| -3.8342 deg inclination |
| 20 life cycle state |
| Coolant through |
| -5 deg lead |
| 0 deg maximum ramping |
| 3 Nm torque |
| 40 - 60 deg insert screw clamping |
| 3/8 in insert seat |
| ANSI Code: A16T-SCLCL 3 |
| ISO Code: A16T-SCLCL 3 |
