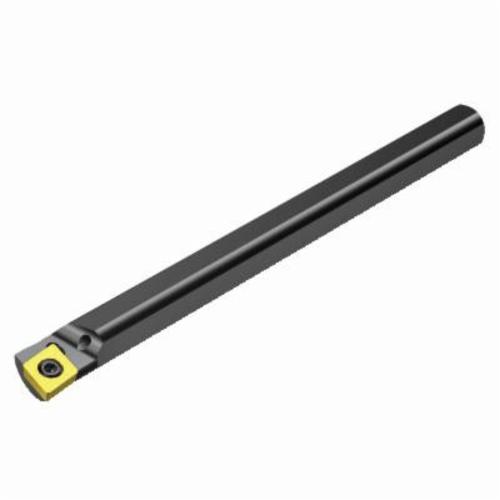

Sandvik Coromant 5727574 CoroTurn® 107 Indexable Boring Bar, 0.6299 in Min, 5.9055 in OAL, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5727574 CoroTurn® 107 Indexable Boring Bar, 0.6299 in Min, 5.9055 in OAL, Left Hand
SKU1247241
MFGR #5727574
Your Cost: $223.00/ea
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 0.6299 in Minimum Bore Dia, 1.8897 in Maximum Bore Depth, 5.9055 in Overall Length, 0.4724 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: CCMT 06 02 04 (MIIDM), CCMT 2(1.5)1 (MIIDN), C-80 deg Diamond Insert, 1/4 in Insert Inscribed Circle, 0.093 in Insert Thickness, 0.3543 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 0.6299 in Minimum Bore Dia, 1.8897 in Maximum Bore Depth, 5.9055 in Overall Length, 0.4724 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: CCMT 06 02 04 (MIIDM), CCMT 2(1.5)1 (MIIDN), C-80 deg Diamond Insert, 1/4 in Insert Inscribed Circle, 0.093 in Insert Thickness, 0.3543 in Width Offset, Steel
Alternate Catalog Number A12M-SCLCL 06 Catalog Number 5727574 Country of Origin IN Gross Weight Per Pack 0.2800 lb Inscribed Circle 1/4 Insert Screw 5763198 Insert Thickness 0.094 in Item Group 210 Overall Length 5.906 in Series CoroTurn® 107 Shank Type Cylindrical with 3-Flats Toolholder Style A..SCLCL Toolholder Type A..SCLCL UPC 11 69826236517 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Left Insert Compatibility CCMT 06 02 04 Insert Shape 80 deg Diamond Material Steel Maximum Bore Depth 1.89 in Minimum Bore Diameter 0.63 in Shank Diameter 0.472 in Through Coolant Yes Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain|Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control|When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107|The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish|Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 11 mm H shank 0 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 95 deg cutting edge -7.3235 deg inclination 20 life cycle state Coolant through -5 deg lead 0 deg maximum ramping 0.9 Nm torque 40 - 60 deg insert screw clamping 1/4 in insert seat ANSI Code: A12M-SCLCL 06 ISO Code: A12M-SCLCL 06
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A12M-SCLCL 06 |
| Catalog Number | 5727574 |
| Country of Origin | IN |
| Gross Weight Per Pack | 0.2800 lb |
| Inscribed Circle | 1/4 |
| Insert Screw | 5763198 |
| Insert Thickness | 0.094 in |
| Item Group | 210 |
| Overall Length | 5.906 in |
| Series | CoroTurn® 107 |
| Shank Type | Cylindrical with 3-Flats |
| Toolholder Style | A..SCLCL |
| Toolholder Type | A..SCLCL |
| UPC 11 | 69826236517 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Left |
| Insert Compatibility | CCMT 06 02 04 |
| Insert Shape | 80 deg Diamond |
| Material | Steel |
| Maximum Bore Depth | 1.89 in |
| Minimum Bore Diameter | 0.63 in |
| Shank Diameter | 0.472 in |
| Through Coolant | Yes |
| Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain|Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control|When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107|The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish|Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 11 mm H shank |
| 0 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 95 deg cutting edge |
| -7.3235 deg inclination |
| 20 life cycle state |
| Coolant through |
| -5 deg lead |
| 0 deg maximum ramping |
| 0.9 Nm torque |
| 40 - 60 deg insert screw clamping |
| 1/4 in insert seat |
| ANSI Code: A12M-SCLCL 06 |
| ISO Code: A12M-SCLCL 06 |
