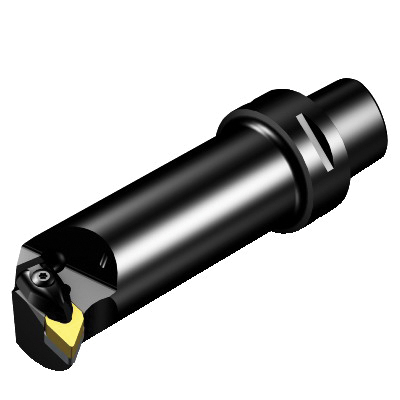

Sandvik Coromant 5727525 T-Max® P Turning Cutting Unit, 3.5433 in, 4.4881 in OAL, Left Hand, DNMG 110408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5727525 T-Max® P Turning Cutting Unit, 3.5433 in, 4.4881 in OAL, Left Hand, DNMG 110408 Insert
SKU1193100
MFGR #5727525
Your Cost: $567.96/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.5433 in Head Length/Projection, 4.4881 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 110408, Left Hand Cutting, 0.6692 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.5433 in Head Length/Projection, 4.4881 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 110408, Left Hand Cutting, 0.6692 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-DDUNL-17090-11 Catalog Number 5727525 Center to Cutting Height 25mm Country of Origin SE Finish T-Max® P Gross Weight Per Pack 1.0100 lb Head Length|Projection 3.5433 in IC 0 Includes -6 Insert Style D-55 deg Diamond Item Group 410 Master Insert DNMG 11 04 08 Material Steel Overall Length 4.4881 in Series T-Max® P Torque Newton Meters 2 Type 400 UPC 11 69826242053 UPC 12 69826242053 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.6692 in Cutting Direction Left Hand Insert Compatibility DNMG 110408 Insert Holding Method Steel Internal or External Internal Number of Inserts 114 mm System Size C4 0 deg body machine side 20 life cycle state 0 deg body workpiece side 25 mm Dia body Axial concentric and radial coolant entry 10 bar coolant Floating wedge, RC hole Axial inclined coolant exit with nozzle, adjustable 40 mm Dia connection 32 mm Dia minimum bore 93 deg cutting edge -12 deg inclination 68 mm L usable 27 deg ramping 1.7 Nm torque 3/8 in insert seat size 4.5 mm W usable 90 mm maximum overhang -3 deg lead -6 deg rake
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C4-DDUNL-17090-11 |
| Catalog Number | 5727525 |
| Center to Cutting Height | 25mm |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 1.0100 lb |
| Head Length|Projection | 3.5433 in |
| IC | 0 |
| Includes | -6 |
| Insert Style | D-55 deg Diamond |
| Item Group | 410 |
| Master Insert | DNMG 11 04 08 |
| Material | Steel |
| Overall Length | 4.4881 in |
| Series | T-Max® P |
| Torque Newton Meters | 2 |
| Type | 400 |
| UPC 11 | 69826242053 |
| UPC 12 | 69826242053 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.6692 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | DNMG 110408 |
| Insert Holding Method | Steel |
| Internal or External | Internal |
| Number of Inserts | 114 mm |
| System Size | C4 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 25 mm Dia body |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Floating wedge, RC hole |
| Axial inclined coolant exit with nozzle, adjustable |
| 40 mm Dia connection |
| 32 mm Dia minimum bore |
| 93 deg cutting edge |
| -12 deg inclination |
| 68 mm L usable |
| 27 deg ramping |
| 1.7 Nm torque |
| 3/8 in insert seat size |
| 4.5 mm W usable |
| 90 mm maximum overhang |
| -3 deg lead |
| -6 deg rake |
