Sandvik Coromant 5727523 T-Max® P Turning Cutting Unit, 2.1653 in, 3.1102 in OAL, Neutral, DNMG 150408 Insert
Custom_Product_Images_Illustration

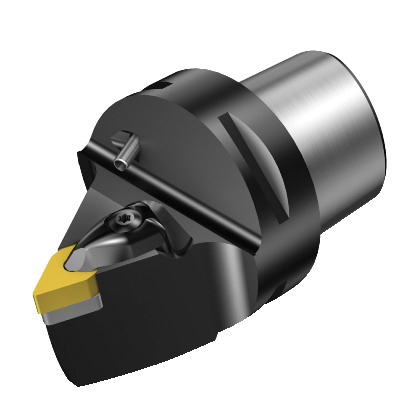

Sandvik Coromant 5727523 T-Max® P Turning Cutting Unit, 2.1653 in, 3.1102 in OAL, Neutral, DNMG 150408 Insert
SKU657346
MFGR #5727523
Your Cost: $387.93/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 2.1653 in Head Length/Projection, 3.1102 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 150408, Neutral Cutting, 0.0196 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 2.1653 in Head Length/Projection, 3.1102 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 150408, Neutral Cutting, 0.0196 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-DDNNN-00055-1504 Catalog Number 5727523 Center to Cutting Height 40mm Country of Origin SE Finish T-Max® P Gross Weight Per Pack 0.7300 lb Head Length|Projection 2.1653 in IC 0 Insert Style D-55 deg Diamond Item Group 410 Master Insert DNMG 15 04 08 Material Steel Overall Length 3.1102 in Series T-Max® P Torque Newton Meters 4 Type T-Max® P UPC 11 69826246128 UPC 12 69826246128 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.0196 in Cutting Direction Neutral Insert Compatibility DNMG 150408 Insert Holding Method Steel Internal or External External Number of Inserts 55 mm System Size C4 0 deg body machine side 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 10 bar coolant Floating wedge, RC hole Decentral coolant exit with nozzles, adjustable 40 mm Dia connection 62.5 deg cutting edge -9 deg inclination 57 deg ramping 3.9 Nm torque 1/2 in insert seat size 55 mm maximum overhang 27.5 deg lead -5 deg rake Bolt and segment clamping adaptive interface ANSI Code: C4-DDNNN-00055-1504 ISO Code: C4-DDNNN-00055-1504
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C4-DDNNN-00055-1504 |
| Catalog Number | 5727523 |
| Center to Cutting Height | 40mm |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 0.7300 lb |
| Head Length|Projection | 2.1653 in |
| IC | 0 |
| Insert Style | D-55 deg Diamond |
| Item Group | 410 |
| Master Insert | DNMG 15 04 08 |
| Material | Steel |
| Overall Length | 3.1102 in |
| Series | T-Max® P |
| Torque Newton Meters | 4 |
| Type | T-Max® P |
| UPC 11 | 69826246128 |
| UPC 12 | 69826246128 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.0196 in |
| Cutting Direction | Neutral |
| Insert Compatibility | DNMG 150408 |
| Insert Holding Method | Steel |
| Internal or External | External |
| Number of Inserts | 55 mm |
| System Size | C4 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Floating wedge, RC hole |
| Decentral coolant exit with nozzles, adjustable |
| 40 mm Dia connection |
| 62.5 deg cutting edge |
| -9 deg inclination |
| 57 deg ramping |
| 3.9 Nm torque |
| 1/2 in insert seat size |
| 55 mm maximum overhang |
| 27.5 deg lead |
| -5 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C4-DDNNN-00055-1504 |
| ISO Code: C4-DDNNN-00055-1504 |
