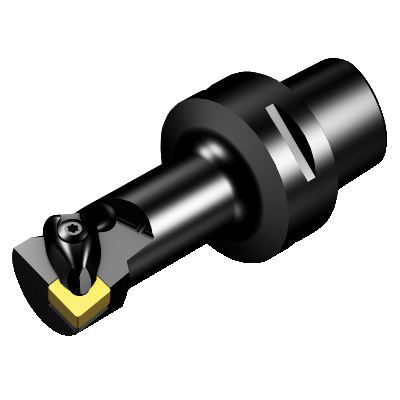

Sandvik Coromant 5727247 T-Max® P Turning Cutting Unit, 3.1496 in, 4.0944 in OAL, Left Hand, CNMG 090308 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5727247 T-Max® P Turning Cutting Unit, 3.1496 in, 4.0944 in OAL, Left Hand, CNMG 090308 Insert
SKU661906
MFGR #5727247
Your Cost: $540.09/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.1496 in Head Length/Projection, 4.0944 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 090308, Left Hand Cutting, 0.5118 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.1496 in Head Length/Projection, 4.0944 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 090308, Left Hand Cutting, 0.5118 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-DCLNL-13080-09 Catalog Number 5727247 Center to Cutting Height 20mm Country of Origin SE Finish T-Max® P Gross Weight Per Pack 0.7200 lb Head Length|Projection 3.1496 in IC 0 Includes 400 Insert Style C-80 deg Diamond Item Group 410 Master Insert CNMG 09 03 08 Material Steel Overall Length 4.0944 in Series T-Max® P Torque Newton Meters 2 Type 80 mm UPC 11 69826242049 UPC 12 69826242049 Warranty -6 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.5118 in Cutting Direction Left Hand Insert Compatibility CNMG 090308 Insert Holding Method Steel Number of Inserts T-Max® P System Size C4 0 deg body machine side 20 life cycle state 0 deg body workpiece side 20 mm Dia body Axial concentric and radial coolant entry 10 bar coolant Floating wedge, RC hole Axial inclined coolant exit with nozzle, adjustable 40 mm Dia connection 25 mm Dia minimum bore 95 deg cutting edge -14 deg inclination 57 mm L usable 0 deg ramping 1.7 Nm torque 3/8 in insert seat size 80 mm maximum overhang -5 deg lead -6 deg rake Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C4-DCLNL-13080-09 |
| Catalog Number | 5727247 |
| Center to Cutting Height | 20mm |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 0.7200 lb |
| Head Length|Projection | 3.1496 in |
| IC | 0 |
| Includes | 400 |
| Insert Style | C-80 deg Diamond |
| Item Group | 410 |
| Master Insert | CNMG 09 03 08 |
| Material | Steel |
| Overall Length | 4.0944 in |
| Series | T-Max® P |
| Torque Newton Meters | 2 |
| Type | 80 mm |
| UPC 11 | 69826242049 |
| UPC 12 | 69826242049 |
| Warranty | -6 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.5118 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | CNMG 090308 |
| Insert Holding Method | Steel |
| Number of Inserts | T-Max® P |
| System Size | C4 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 20 mm Dia body |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Floating wedge, RC hole |
| Axial inclined coolant exit with nozzle, adjustable |
| 40 mm Dia connection |
| 25 mm Dia minimum bore |
| 95 deg cutting edge |
| -14 deg inclination |
| 57 mm L usable |
| 0 deg ramping |
| 1.7 Nm torque |
| 3/8 in insert seat size |
| 80 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
