Sandvik Coromant

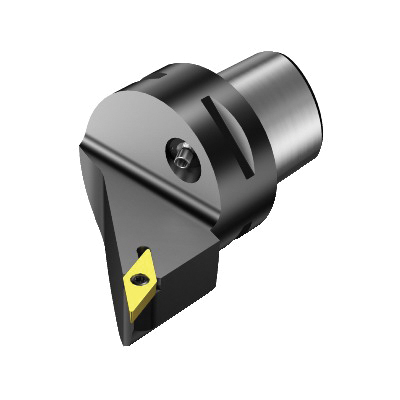

Sandvik Coromant 5727108 CoroTurn® 107 Turning Cutting Unit, 1.5748 in, 2.3228 in OAL, Left Hand, VBMT 110204 and VCMT 110204 Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5727108 CoroTurn® 107 Turning Cutting Unit, 1.5748 in, 2.3228 in OAL, Left Hand, VBMT 110204 and VCMT 110204 Insert
SKU477245
MFGR #5727108
Your Cost: $371.53/ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 1.5748 in Head Length/Projection, 2.3228 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 110204 and VCMT 110204, Left Hand Cutting, 0.8661 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 1.5748 in Head Length/Projection, 2.3228 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 110204 and VCMT 110204, Left Hand Cutting, 0.8661 in Center to Cutting Edge, Steel
Catalog Number 5727108 Country of Origin SE Gross Weight Per Pack 0.4300 lb Head Length|Projection 40 mm Insert Style VBMT/VCMT Material Steel Overall Length 59 mm Series CoroTurn® 107 UPC 11 69826238841 UPC 12 69826238841 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 22 mm Cutting Direction Left Hand Insert Compatibility VBMT 110204, VCMT 110204 Insert Holding Method Screw Clamp Internal or External Internal System Size C3 Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 10 bar coolant 40 - 60 deg insert screw clamping Decentral coolant exit with nozzles, adjustable 32 mm Dia connection 107.5 deg cutting edge 0 deg inclination 35 deg ramping 0.9 Nm torque 1/4 in insert seat size 40 mm maximum overhang -17.5 deg lead 0 deg rake Bolt and segment clamping adaptive interface ANSI Code: C3-SVHBL-22040-11 ISO Code: C3-SVHBL-22040-11
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 5727108 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.4300 lb |
| Head Length|Projection | 40 mm |
| Insert Style | VBMT/VCMT |
| Material | Steel |
| Overall Length | 59 mm |
| Series | CoroTurn® 107 |
| UPC 11 | 69826238841 |
| UPC 12 | 69826238841 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 22 mm |
| Cutting Direction | Left Hand |
| Insert Compatibility | VBMT 110204, VCMT 110204 |
| Insert Holding Method | Screw Clamp |
| Internal or External | Internal |
| System Size | C3 |
| Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| Decentral coolant exit with nozzles, adjustable |
| 32 mm Dia connection |
| 107.5 deg cutting edge |
| 0 deg inclination |
| 35 deg ramping |
| 0.9 Nm torque |
| 1/4 in insert seat size |
| 40 mm maximum overhang |
| -17.5 deg lead |
| 0 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C3-SVHBL-22040-11 |
| ISO Code: C3-SVHBL-22040-11 |
