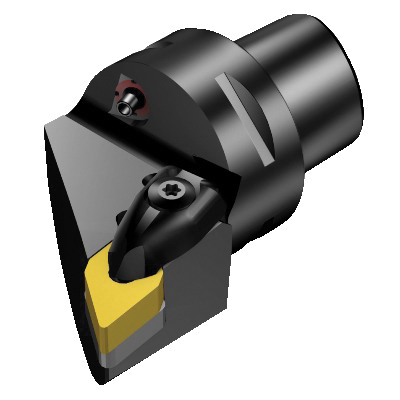

Sandvik Coromant 5727042 T-Max® P Turning Cutting Unit, 1.7716 in, 2.5196 in OAL, Right Hand, DNMG 110408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5727042 T-Max® P Turning Cutting Unit, 1.7716 in, 2.5196 in OAL, Right Hand, DNMG 110408 Insert
SKU340249
MFGR #5727042
Your Cost: $387.93/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 1.7716 in Head Length/Projection, 2.5196 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 110408, Right Hand Cutting, 0.8661 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 1.7716 in Head Length/Projection, 2.5196 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 110408, Right Hand Cutting, 0.8661 in Center to Cutting Edge, Steel
Alternate Catalog Number C3-DDJNR-22045-11 Catalog Number 5727042 Country of Origin SE Gross Weight Per Pack 0.4900 lb Head Length|Projection 45 mm Insert Style DNMG Item Group 410 Material Steel Overall Length 64 mm Series T-Max® P UPC 11 69826227754 UPC 12 69826227754 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 22 mm Cutting Direction Right Hand Insert Compatibility DNMG 110408 Insert Holding Method Wedge Clamp System Size C3 Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 10 bar coolant Floating wedge, RC hole Decentral coolant exit with nozzles, adjustable 32 mm Dia connection 60 - 121 mm Dia minimum bore 93 deg cutting edge -7 deg inclination 27 deg ramping 1.7 Nm torque 3/8 in insert seat size 45 mm maximum overhang -3 deg lead -6 deg rake Bolt and segment clamping adaptive interface ANSI Code: C3-DDJNR-22045-11 ISO Code: C3-DDJNR-22045-11
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C3-DDJNR-22045-11 |
| Catalog Number | 5727042 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.4900 lb |
| Head Length|Projection | 45 mm |
| Insert Style | DNMG |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 64 mm |
| Series | T-Max® P |
| UPC 11 | 69826227754 |
| UPC 12 | 69826227754 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 22 mm |
| Cutting Direction | Right Hand |
| Insert Compatibility | DNMG 110408 |
| Insert Holding Method | Wedge Clamp |
| System Size | C3 |
| Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Floating wedge, RC hole |
| Decentral coolant exit with nozzles, adjustable |
| 32 mm Dia connection |
| 60 - 121 mm Dia minimum bore |
| 93 deg cutting edge |
| -7 deg inclination |
| 27 deg ramping |
| 1.7 Nm torque |
| 3/8 in insert seat size |
| 45 mm maximum overhang |
| -3 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C3-DDJNR-22045-11 |
| ISO Code: C3-DDJNR-22045-11 |
