Sandvik Coromant 5726778 CoroCut® 1-2, Right Hand, N123D2-0150-0002-CM Insert
Modular Grooving Cutting Unit Heads
1237152
MFG #: 5726778
Sandvik Coromant
479.69000
/ ea

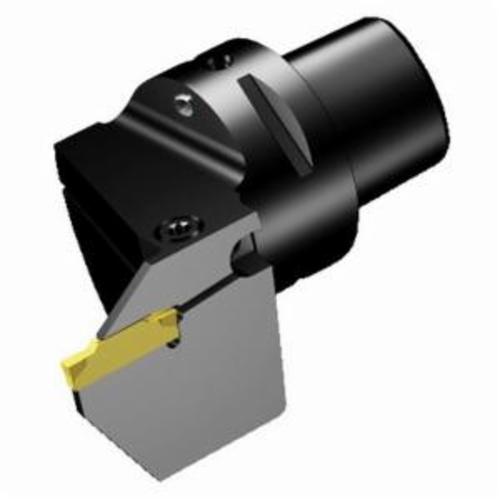

Sandvik Coromant Parting and Grooving Cutting Unit, Series: CoroCut® 1-2, Right Hand Cutting, Insert Compatibility: N123D2-0150-0002-CM, 0.5905 in Maximum Depth of Cut, Steel
- Features
| Cost efficiency with two edges|Secure and efficient machining |
| 0 deg workpiece side body |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Axial inclined coolant exit with nozzle, adjustable |
| 32 mm Dia connection |
| S-Square insert shape |
| 0 deg orthogonal rake |
| 90 deg cutting edge |
| 0 deg inclination |
| 20 life cycle state |
| 50 mm L functional |
| 50 mm L to cutting item reference point |
| 69 mm OAL |
| 50 mm maximum overhang |
| 3.5 Nm torque |
| 22 mm W functional |
| ANSI Code: C3-RF123D15-22050B |
| ISO Code: C3-RF123D15-22050B |
