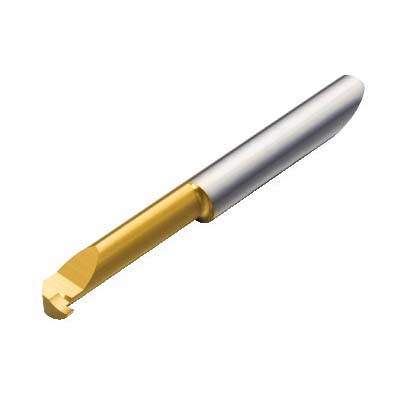

Sandvik Coromant 5726627 CoroTurn® XS Grooving Tool/Insert, CXS-06G200-6225R 1025 ANSI, CXS-xxG Insert, 0.0787 in W Cutting
CXS Grooving Inserts
388284
MFG #: 5726627
Sandvik Coromant
57.80000
/ ea
Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.0787 in Cutting Width, 0.0708 in Maximum Depth of Cut, 0 deg Lead Angle, 0.002 in Corner Radius, Positive Rake, 1.9626 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-06G200-6225R 1025, ISO Code: CXS-06G200-6225R 1025, Right Hand, Solid Carbide, PVD Coated, Material Grade: M/N/P/S
- Features
| Optimized for machining of small high quality features|High precision and repeatability|Reliable and easy to use clamping system|Solid carbide boring bar fits precisely into the adapter with a locating pin|Rigid clamping with increased stability with collet clamped adapters|Precision ground tools for high repeatability|Longer tool life by minimized micro vibrations|Clamping nut ensures easy change of cutting tool |
| 20 life cycle state |
| 90 deg body workpiece side |
| 0.04 mm W chamfer |
| Without coolant entry |
| 0 mm W cutting lower tolerance |
| 0.05 mm W cutting upper tolerance |
| No coolant exit |
| 6 mm Dia connection |
| 6.2 mm Dia minimum bore |
| 90 deg cutting edge |
| 45 deg corner chamfer |
| 47.25 mm L functional |
| 25 mm L usable |
| 24 mm L to cutting item reference point |
| 28 mm maximum overhang |
| 2 deg relief |
| 3.95 mm W body |
| 2.95 mm W functional |
| 1 edge, cylindrical mounting |
