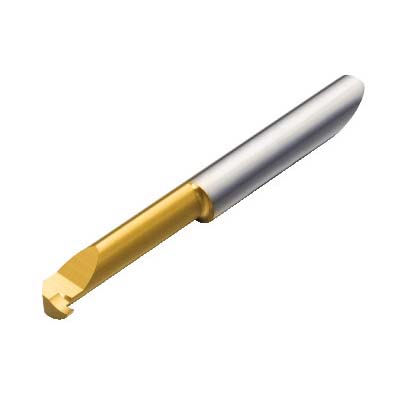

Sandvik Coromant 5726585 CoroTurn® XS Grooving Tool/Insert, CXS-04G100-4210R 1025, CXS-xxG Insert, 0.0393 in W Cutting, 1025, CXS-04G100-4210R 1025

CXS
736605 MFG #: 5726585
Sandvik Coromant
40.55000 / ea
Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.0393 in Cutting Width, 0.0314 in Maximum Depth of Cut, 0 deg Lead Angle, 1.1409 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-04G100-4210R 1025, ISO Code: CXS-04G100-4210R 1025, Right Hand, Solid Carbide, PVD Coated, Material Grade: M/N/P/S
QTY
  • Applications
  • Features
Internal Turning, Face Grooving, Profiling, Threading in All Materials and Finishing
Optimized for machining of small high quality featuresHigh precision and repeatabilityReliable and easy to use clamping systemSolid carbide boring bar fits precisely into the adapter with a locating pinRigid clamping with increased stability with collet clamped adaptersPrecision ground tools for high repeatabilityLonger tool life by minimized micro vibrationsClamping nut ensures easy change of cutting tool
20 life cycle state
90 deg body workpiece side
0.04 mm W chamfer
Without coolant entry
0 mm W cutting lower tolerance
0.05 mm W cutting upper tolerance
No coolant exit
4 mm Dia connection
4.2 mm Dia minimum bore
90 deg cutting edge
45 deg corner chamfer
27.25 mm L functional
10 mm L usable
9.5 mm L to cutting item reference point
13 mm maximum overhang
2 deg relief
2.95 mm W body
1.95 mm W functional
1 edge
