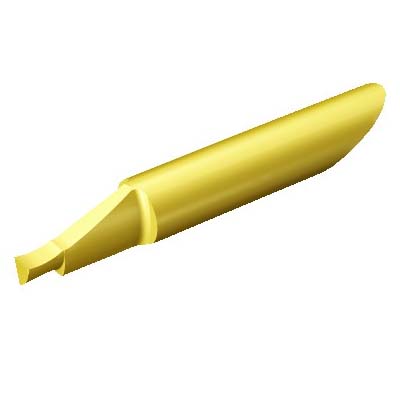

Sandvik Coromant 5726484 CoroTurn® XS Face Grooving Tool/Insert, CXS-06F150-6215AR 1025, CXS..F..AR/L (1) Insert, 0.059 in W Cutting, 1025, CXS-06F150-6215AR 1025
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5726484 CoroTurn® XS Face Grooving Tool/Insert, CXS-06F150-6215AR 1025, CXS..F..AR/L (1) Insert, 0.059 in W Cutting, 1025, CXS-06F150-6215AR 1025
SKU397794
MFGR #5726484
Your Cost: $65.44/ea
List: Sandvik Coromant Face Grooving Tool/Insert, Series: CoroTurn® XS, CXS..F..AR/L (1) Insert, 0.059 in Cutting Width, 0.1181 in Maximum Depth of Cut, 0.0059 in Corner Radius, 0 deg Rake, 1.6732 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-06F150-6215AR 1025, ISO Code: CXS-06F150-6215AR 1025, Right Hand, Solid Carbide, PVD Coated, Material Grade: M/N/P/S
Sandvik Coromant Face Grooving Tool/Insert, Series: CoroTurn® XS, CXS..F..AR/L (1) Insert, 0.059 in Cutting Width, 0.1181 in Maximum Depth of Cut, 0.0059 in Corner Radius, 0 deg Rake, 1.6732 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-06F150-6215AR 1025, ISO Code: CXS-06F150-6215AR 1025, Right Hand, Solid Carbide, PVD Coated, Material Grade: M/N/P/S
Alternate Catalog Number CXS-06F150-6215AR 1025 Catalog Number 5726484 Country of Origin GB Finish PVD TiAlN/TiN Coated Groove Width 1.5 mm Gross Weight Per Pack 5.0700 lb Item Group 325 Material Grade 1025 Maximum Hole Depth 15 mm Minimum Hole Diameter 6 mm Overall Length 42.5 mm Projection 18 mm Series CoroTurn® XS Shank Diameter 6 mm Shank Length 0.7087 in UPC 11 69826226599 UPC 12 69826226599 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Material Solid Carbide Optimized for machining of small high quality features|High precision and repeatability|Reliable and easy to use clamping system|Solid carbide boring bar fits precisely into the adapter with a locating pin|Rigid clamping with increased stability with collet clamped adapters|Precision ground tools for high repeatability|Longer tool life by minimized micro vibrations|Clamping nut ensures easy change of cutting tool 20 life cycle state Without coolant entry 0 mm W cutting lower tolerance 0.05 mm cutting width upper tolerance No coolant exit 3.2 mm minimum axial groove ID 6 mm Dia connection 90 deg cutting edge 0 deg inclination 0 deg body workpiece side 37.3 mm L functional 18 mm maximum overhang -0.02 mm corner radius lower tolerance 0.02 mm corner radius upper tolerance 2.95 mm W functiona
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CXS-06F150-6215AR 1025 |
| Catalog Number | 5726484 |
| Country of Origin | GB |
| Finish | PVD TiAlN/TiN Coated |
| Groove Width | 1.5 mm |
| Gross Weight Per Pack | 5.0700 lb |
| Item Group | 325 |
| Material Grade | 1025 |
| Maximum Hole Depth | 15 mm |
| Minimum Hole Diameter | 6 mm |
| Overall Length | 42.5 mm |
| Projection | 18 mm |
| Series | CoroTurn® XS |
| Shank Diameter | 6 mm |
| Shank Length | 0.7087 in |
| UPC 11 | 69826226599 |
| UPC 12 | 69826226599 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Material | Solid Carbide |
| Optimized for machining of small high quality features|High precision and repeatability|Reliable and easy to use clamping system|Solid carbide boring bar fits precisely into the adapter with a locating pin|Rigid clamping with increased stability with collet clamped adapters|Precision ground tools for high repeatability|Longer tool life by minimized micro vibrations|Clamping nut ensures easy change of cutting tool |
| 20 life cycle state |
| Without coolant entry |
| 0 mm W cutting lower tolerance |
| 0.05 mm cutting width upper tolerance |
| No coolant exit |
| 3.2 mm minimum axial groove ID |
| 6 mm Dia connection |
| 90 deg cutting edge |
| 0 deg inclination |
| 0 deg body workpiece side |
| 37.3 mm L functional |
| 18 mm maximum overhang |
| -0.02 mm corner radius lower tolerance |
| 0.02 mm corner radius upper tolerance |
| 2.95 mm W functiona |
