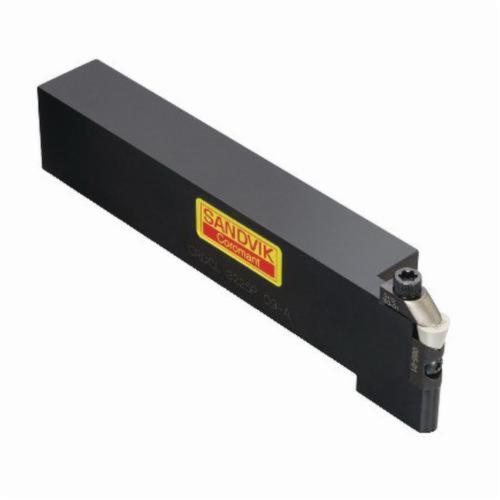

Sandvik Coromant 5726130 T-Max Shank Tool, CRDCR/L Tool Holder, RCGX 090700 (MIIDM) and RCGX 35 (MIIDN) Insert, Rectangle Shank, Right Hand
Indexable Turning Tool Holders
1141063
MFG #: 5726130
Sandvik Coromant
298.05000
/ ea
Sandvik Coromant Shank Tool, Series: T-Max, CRDCR/L Tool Holder, 6.6929 in Overall Length, Rectangle Shank, 1.2598 in H x 0.9842 in W Shank, Insert Compatibility: RCGX 090700 (MIIDM) and RCGX 35 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, ANSI Code: CRDCR 3225P 09-A, ISO Code: CRDCR 3225P 09-A, 0 deg Rake, Steel
- Features
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 90 deg maximum ramping |
| 20 life cycle state |
| 29.5 mm maximum overhang |
| 7.5 Nm torque |
| 25.8 mm W functional |
| 29.5 mm L usable |
| Top clamping for flat surface |
| R - Round insert |
| ANSI Code: CRDCR 3225P 09-A |
| ISO Code: CRDCR 3225P 09-A |
