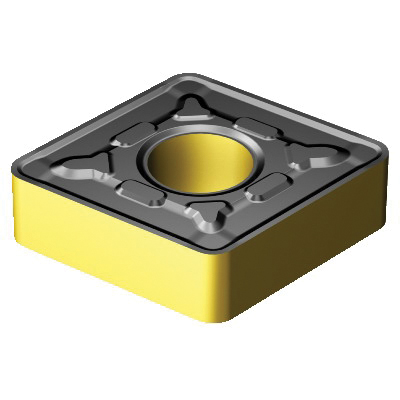

Sandvik Coromant 5725606 T-Max® P Turning Insert, CNMG 866-PR 4215, C-80 deg Diamond, CNMG-PR Insert, 4215, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 5725606 T-Max® P Turning Insert, CNMG 866-PR 4215, C-80 deg Diamond, CNMG-PR Insert, 4215, Carbide
SKU468784
MFGR #5725606
Your Cost: $74.51/ea
List: Sandvik Coromant Turning Insert, Series: T-Max® P, CNMG-PR Insert, C-80 deg Diamond, 1 in Inscribed Circle, 3/8 in Thickness, 1.0154 in Length, PR Chipbreaker, 0.0937 in Corner Radius, 0.359 in Hole Dia, Manufacturer's Grade: 4215, ANSI Code: CNMG 866-PR 4215, ISO Code: CNMG 25 09 24-PR 4215, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated
Sandvik Coromant Turning Insert, Series: T-Max® P, CNMG-PR Insert, C-80 deg Diamond, 1 in Inscribed Circle, 3/8 in Thickness, 1.0154 in Length, PR Chipbreaker, 0.0937 in Corner Radius, 0.359 in Hole Dia, Manufacturer's Grade: 4215, ANSI Code: CNMG 866-PR 4215, ISO Code: CNMG 25 09 24-PR 4215, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated
ANSI Code CNMG 866-PR 4215 Catalog Number 5725606 Corner Radius 0.094 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.9400 lb Hole Diameter 0.36 in Included Angle 80 ° ISO Code CNMG 25 09 24-PR 4215 Relief Angle 0 ° Series T-Max® P Thickness 3/8 in UPC 11 69826239137 UPC 12 69826239137 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PR Cutting Direction Neutral For Use On Cast Iron, Stainless Steel and Steel Inscribed Circle 1 in Insert Size 866 Insert Style CNMG Manufacturer's Grade 4215 Material Carbide Material Grade K, M, P Maximum Depth of Cut 0.591 in Rake Negative Seat Size 25 Shape Rhombic Ideal for long overhangs For unstable or thin-walled components Low cutting pressures Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | CNMG 866-PR 4215 |
| Catalog Number | 5725606 |
| Corner Radius | 0.094 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.9400 lb |
| Hole Diameter | 0.36 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 25 09 24-PR 4215 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 3/8 in |
| UPC 11 | 69826239137 |
| UPC 12 | 69826239137 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron, Stainless Steel and Steel |
| Inscribed Circle | 1 in |
| Insert Size | 866 |
| Insert Style | CNMG |
| Manufacturer's Grade | 4215 |
| Material | Carbide |
| Material Grade | K, M, P |
| Maximum Depth of Cut | 0.591 in |
| Rake | Negative |
| Seat Size | 25 |
| Shape | Rhombic |
| Ideal for long overhangs |
| For unstable or thin-walled components |
| Low cutting pressures |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
