Sandvik Coromant

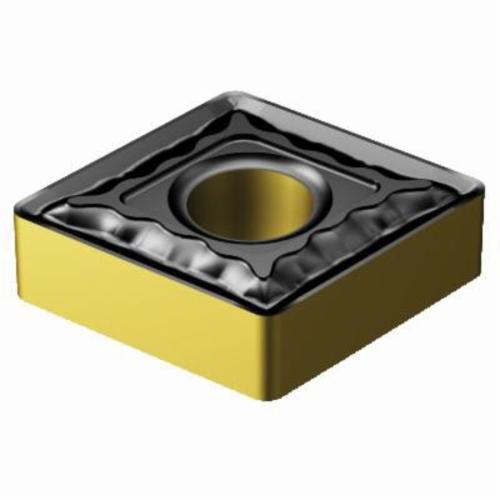

Sandvik Coromant 5725585 T-Max® P Negative Basic Shape Turning Insert, CNMG 643-QM 4235, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5725585 T-Max® P Negative Basic Shape Turning Insert, CNMG 643-QM 4235, C-80 deg Diamond, CNMG Insert
SKU549193
MFGR #5725585
Your Cost: $34.73/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 8 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 0.7615 in Length, QM Chipbreaker, 0.0468 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 4235, ANSI Code: CNMG 643-QM 4235, ISO Code: CNMG 19 06 12-QM 4235, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 8 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 0.7615 in Length, QM Chipbreaker, 0.0468 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 4235, ANSI Code: CNMG 643-QM 4235, ISO Code: CNMG 19 06 12-QM 4235, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M/P
ANSI Code CNMG 643-QM 4235 Catalog Number 5725585 Corner Radius 0.047 in Country of Origin IN Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.7100 lb Hole Diameter 0.312 in Included Angle 80 ° ISO Code CNMG 19 06 12-QM 4235 Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826237207 UPC 12 69826237207 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker QM Cutting Direction Neutral For Use On Cast Iron, Stainless Steel and Steel Inscribed Circle 3/4 in Insert Size 643 Insert Style CNMG Manufacturer's Grade 4235 Material Carbide Material Grade K, M, P Maximum Depth of Cut 0.315 in Rake Negative Seat Size 19 Shape Rhombic Medium machining, especially for high temperature alloys (Ni, Co, Fe-based alloys) Sharp cutting edge design Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | CNMG 643-QM 4235 |
| Catalog Number | 5725585 |
| Corner Radius | 0.047 in |
| Country of Origin | IN |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.7100 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 19 06 12-QM 4235 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826237207 |
| UPC 12 | 69826237207 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | QM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron, Stainless Steel and Steel |
| Inscribed Circle | 3/4 in |
| Insert Size | 643 |
| Insert Style | CNMG |
| Manufacturer's Grade | 4235 |
| Material | Carbide |
| Material Grade | K, M, P |
| Maximum Depth of Cut | 0.315 in |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Rhombic |
| Medium machining, especially for high temperature alloys (Ni, Co, Fe-based alloys) |
| Sharp cutting edge design |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
