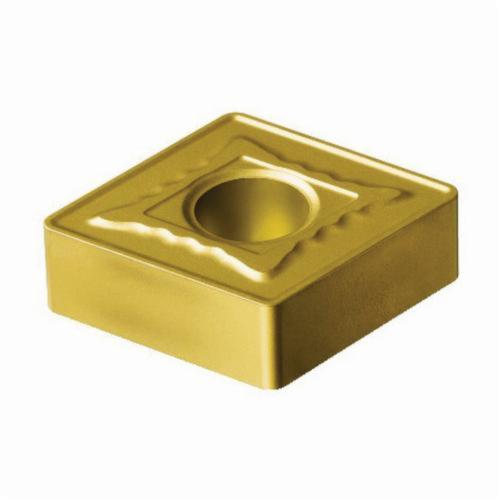

Sandvik Coromant 5725418 T-Max® P Negative Basic Shape Turning Insert, CNMG 642-MR 235, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5725418 T-Max® P Negative Basic Shape Turning Insert, CNMG 642-MR 235, C-80 deg Diamond, CNMG Insert
SKU323938
MFGR #5725418
Your Cost: $37.43/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 12 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 0.7615 in Length, MR Chipbreaker, 0.0312 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 235, ANSI Code: CNMG 642-MR 235, ISO Code: CNMG 19 06 08-MR 235, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 12 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 0.7615 in Length, MR Chipbreaker, 0.0312 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 235, ANSI Code: CNMG 642-MR 235, ISO Code: CNMG 19 06 08-MR 235, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M/P
Alternate Catalog Number CNMG 642-MR 235 ANSI Code CNMG 642-MR 235 Catalog Number 5725418 Corner Radius 0.0312 in Country of Origin SE Finish CVD Coated Gross Weight Per Pack 0.0700 lb Hand of Insert Neutral Hole Diameter 0.312 in Included Angle 80 deg ISO Code CNMG 19 06 08-MR 235 Item Group 110 Length 0.7615 in Relief Angle 0 deg LB Series T-Max® P Thickness 1/4 in Type Negative Basic Shape UPC 11 69826268653 UPC 12 69826268653 Width MR Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MR Inscribed Circle 3/4 in Insert Size C - 80 deg Diamond Insert Style CNMG Manufacturer's Grade 235 Material Carbide Material Grade M/P Maximum Depth of Cut 12 mm Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 20 life cycle state 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.15 - 0.55 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 642-MR 235 |
| ANSI Code | CNMG 642-MR 235 |
| Catalog Number | 5725418 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0700 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.312 in |
| Included Angle | 80 deg |
| ISO Code | CNMG 19 06 08-MR 235 |
| Item Group | 110 |
| Length | 0.7615 in |
| Relief Angle | 0 deg LB |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826268653 |
| UPC 12 | 69826268653 |
| Width | MR |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MR |
| Inscribed Circle | 3/4 in |
| Insert Size | C - 80 deg Diamond |
| Insert Style | CNMG |
| Manufacturer's Grade | 235 |
| Material | Carbide |
| Material Grade | M/P |
| Maximum Depth of Cut | 12 mm |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 20 life cycle state |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.15 - 0.55 mm/r cutting feed |
