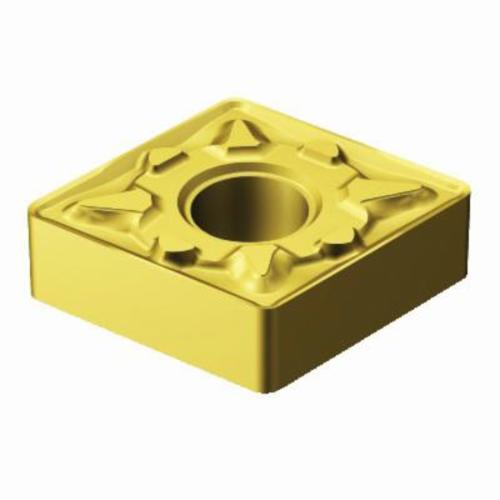

Sandvik Coromant 5724992 T-Max® P Negative Basic Shape Turning Insert, CNMG 543-MM 2035, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5724992 T-Max® P Negative Basic Shape Turning Insert, CNMG 543-MM 2035, C-80 deg Diamond, CNMG Insert
SKU711292
MFGR #5724992
Your Cost: $25.76/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 7.2 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, MM Chipbreaker, 0.0468 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 2035, ANSI Code: CNMG 543-MM 2035, ISO Code: CNMG 16 06 12-MM 2035, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 7.2 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, MM Chipbreaker, 0.0468 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 2035, ANSI Code: CNMG 543-MM 2035, ISO Code: CNMG 16 06 12-MM 2035, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M
Alternate Catalog Number CNMG 543-MM 2035 ANSI Code CNMG 543-MM 2035 Catalog Number 5724992 Corner Radius 0.0468 in Country of Origin JP Finish PVD Coated Gross Weight Per Pack 0.0400 lb Hand of Insert Neutral Hole Diameter 1/4 in Included Angle 80 deg ISO Code CNMG 16 06 12-MM 2035 Item Group 110 Length 0.6346 in Relief Angle 0 deg LB Series T-Max® P Thickness 1/4 in Type Negative Basic Shape UPC 11 69826251415 UPC 12 69826251415 Width MM Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MM Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 5/8 in Insert Size C - 80 deg Diamond Insert Style CNMG Manufacturer's Grade 2035 Material Carbide Material Grade M Maximum Depth of Cut 7.2 mm Rake Negative Seat Size 16 Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 20 life cycle state 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.1 - 0.6 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 543-MM 2035 |
| ANSI Code | CNMG 543-MM 2035 |
| Catalog Number | 5724992 |
| Corner Radius | 0.0468 in |
| Country of Origin | JP |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0400 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 1/4 in |
| Included Angle | 80 deg |
| ISO Code | CNMG 16 06 12-MM 2035 |
| Item Group | 110 |
| Length | 0.6346 in |
| Relief Angle | 0 deg LB |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826251415 |
| UPC 12 | 69826251415 |
| Width | MM |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 5/8 in |
| Insert Size | C - 80 deg Diamond |
| Insert Style | CNMG |
| Manufacturer's Grade | 2035 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 7.2 mm |
| Rake | Negative |
| Seat Size | 16 |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 20 life cycle state |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.1 - 0.6 mm/r cutting feed |
