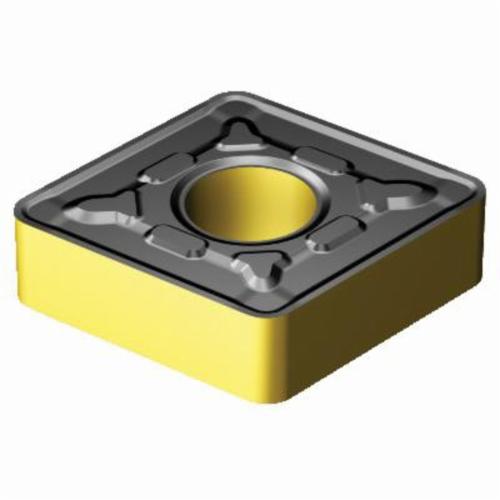

Sandvik Coromant 5724571 T-Max® P Negative Basic Shape Turning Insert, CNMG 432-PR 4235, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5724571 T-Max® P Negative Basic Shape Turning Insert, CNMG 432-PR 4235, C-80 deg Diamond, CNMG Insert
SKU351556
MFGR #5724571
Your Cost: $15.75/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 7 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, PR Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4235, ANSI Code: CNMG 432-PR 4235, ISO Code: CNMG 12 04 08-PR 4235, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 7 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, PR Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4235, ANSI Code: CNMG 432-PR 4235, ISO Code: CNMG 12 04 08-PR 4235, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M/P
ANSI Code CNMG 432-PR 4235 Catalog Number 5724571 Corner Radius 0.0312 in Country of Origin JP Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 80 deg ISO Code CNMG 12 04 08-PR 4235 Length 0.5077 in Relief Angle 0 deg LB Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape UPC 11 69826236487 UPC 12 69826236487 Width PR Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PR Inscribed Circle 1/2 in Insert Size C - 80 deg Diamond Insert Style CNMG Manufacturer's Grade 4235 Material Carbide Material Grade M/P Maximum Depth of Cut 7 mm Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 20 life cycle state 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.2 - 0.5 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | CNMG 432-PR 4235 |
| Catalog Number | 5724571 |
| Corner Radius | 0.0312 in |
| Country of Origin | JP |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 80 deg |
| ISO Code | CNMG 12 04 08-PR 4235 |
| Length | 0.5077 in |
| Relief Angle | 0 deg LB |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826236487 |
| UPC 12 | 69826236487 |
| Width | PR |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PR |
| Inscribed Circle | 1/2 in |
| Insert Size | C - 80 deg Diamond |
| Insert Style | CNMG |
| Manufacturer's Grade | 4235 |
| Material | Carbide |
| Material Grade | M/P |
| Maximum Depth of Cut | 7 mm |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 20 life cycle state |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.2 - 0.5 mm/r cutting feed |
