Sandvik Coromant
Sandvik Coromant 5724476 CoroDrill® 880 Insert Drill, 5/8 in Drill, 3/4 in Shank, 1-7/8 in Maximum Drill, 3

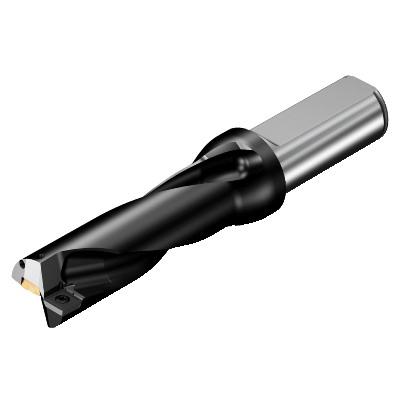

Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5724476 CoroDrill® 880 Insert Drill, 5/8 in Drill, 3/4 in Shank, 1-7/8 in Maximum Drill, 3
SKU397901
MFGR #5724476
Your Cost: $699.04/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 5/8 in Drill, 3/4 in Shank Dia, Cylinder Shank, 1-7/8 in Maximum Drill Depth, 4.5335 in Overall Length, 3 Drill Depth by Dia Ratio, Insert Compatibility: 880-020204H-C-GM (MIIDM) and 880-0202W04H-P-GM (MIIDM), 1-7/8 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 5/8 in Drill, 3/4 in Shank Dia, Cylinder Shank, 1-7/8 in Maximum Drill Depth, 4.5335 in Overall Length, 3 Drill Depth by Dia Ratio, Insert Compatibility: 880-020204H-C-GM (MIIDM) and 880-0202W04H-P-GM (MIIDM), 1-7/8 in Flute Length
Alternate Catalog Number A880-D0625LX19-03 Catalog Number 5724476 Country of Origin US Drill Depth by Diameter Ratio 3 Gage Insert CoroDrill® 880 Gross Weight Per Pack 0.4300 lb Item Group 465 Number of Drill Inserts 19.05 mm Overall Length 4.5335 in Series CoroDrill® 880 Type 15.875 mm UPC 11 69826233026 UPC 12 69826233026 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter Cylindrical Drill Size 5/8 in Flute Length 1-7/8 in Insert Compatibility 880-020204H-C-GM (MIIDM) and 880-0202W04H-P-GM (MIIDM) Maximum Drill Depth 1-7/8 in Shank Diameter 3/4 in Shank Length 47.625 mm Shank Type Cylinder 64.8166 mm L functional 19.05 mm Dia body 50 mm L clamping 0.3344 mm L point 33000 r/min 0 - 0.25 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 22 deg right hand helix flute 5 deg rake orthogonal 17.3 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 60.1282 mm L chip flute 20 life cycle state 51.0032 mm L steel body
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | A880-D0625LX19-03 |
| Catalog Number | 5724476 |
| Country of Origin | US |
| Drill Depth by Diameter Ratio | 3 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 0.4300 lb |
| Item Group | 465 |
| Number of Drill Inserts | 19.05 mm |
| Overall Length | 4.5335 in |
| Series | CoroDrill® 880 |
| Type | 15.875 mm |
| UPC 11 | 69826233026 |
| UPC 12 | 69826233026 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | Cylindrical |
| Drill Size | 5/8 in |
| Flute Length | 1-7/8 in |
| Insert Compatibility | 880-020204H-C-GM (MIIDM) and 880-0202W04H-P-GM (MIIDM) |
| Maximum Drill Depth | 1-7/8 in |
| Shank Diameter | 3/4 in |
| Shank Length | 47.625 mm |
| Shank Type | Cylinder |
| 64.8166 mm L functional |
| 19.05 mm Dia body |
| 50 mm L clamping |
| 0.3344 mm L point |
| 33000 r/min |
| 0 - 0.25 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 22 deg right hand helix flute |
| 5 deg rake orthogonal |
| 17.3 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 60.1282 mm L chip flute |
| 20 life cycle state |
| 51.0032 mm L steel body |
