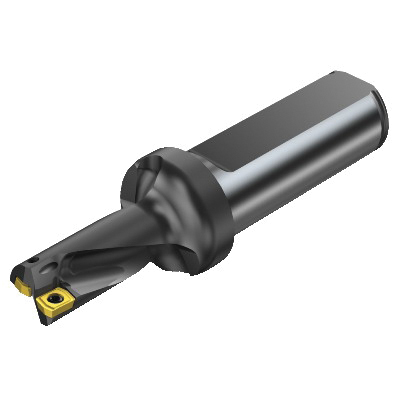

Sandvik Coromant 5724455 CoroDrill® 880 Insert Drill, 0.687 in Drill, 1 in Shank, 1.374 in Maximum Drill, 2
Custom_Product_Images_Illustration
Sandvik Coromant 5724455 CoroDrill® 880 Insert Drill, 0.687 in Drill, 1 in Shank, 1.374 in Maximum Drill, 2
SKU1178466
MFGR #5724455
Your Cost: $671.08/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.687 in Drill, 1 in Shank Dia, Cylinder Shank, 1.374 in Maximum Drill Depth, 4.2967 in Overall Length, 2 Drill Depth by Dia Ratio, Insert Compatibility: 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM), 1.374 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.687 in Drill, 1 in Shank Dia, Cylinder Shank, 1.374 in Maximum Drill Depth, 4.2967 in Overall Length, 2 Drill Depth by Dia Ratio, Insert Compatibility: 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM), 1.374 in Flute Length
Alternate Catalog Number A880-D0687LX25-02 Catalog Number 5724455 Country of Origin US Drill Depth by Diameter Ratio 2 Gage Insert CoroDrill® 880 Gross Weight Per Pack 0.6600 lb Item Group 465 Modular Connection Size 1 Number of Drill Inserts 25.4 mm Overall Length 4.2967 in Series CoroDrill® 880 Type Cylindrical UPC 11 69826231311 UPC 12 69826231311 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 34.8996 mm Drill Size 0.687 in Flute Length 1.374 in Insert Compatibility 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM) Maximum Drill Depth 1.374 in Shank Diameter 1 in Shank Length 2 Shank Type Cylinder 52.7662 mm L functional 25.4 mm Dia body 56 mm L clamping 0.3706 mm L point 33000 r/min 0 - 0.25 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 22 deg right hand helix flute 5 deg rake orthogonal 23.4 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 48.11908 mm L chip flute 20 life cycle state 38.0492 mm L steel body
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | A880-D0687LX25-02 |
| Catalog Number | 5724455 |
| Country of Origin | US |
| Drill Depth by Diameter Ratio | 2 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 0.6600 lb |
| Item Group | 465 |
| Modular Connection Size | 1 |
| Number of Drill Inserts | 25.4 mm |
| Overall Length | 4.2967 in |
| Series | CoroDrill® 880 |
| Type | Cylindrical |
| UPC 11 | 69826231311 |
| UPC 12 | 69826231311 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 34.8996 mm |
| Drill Size | 0.687 in |
| Flute Length | 1.374 in |
| Insert Compatibility | 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM) |
| Maximum Drill Depth | 1.374 in |
| Shank Diameter | 1 in |
| Shank Length | 2 |
| Shank Type | Cylinder |
| 52.7662 mm L functional |
| 25.4 mm Dia body |
| 56 mm L clamping |
| 0.3706 mm L point |
| 33000 r/min |
| 0 - 0.25 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 22 deg right hand helix flute |
| 5 deg rake orthogonal |
| 23.4 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 48.11908 mm L chip flute |
| 20 life cycle state |
| 38.0492 mm L steel body |
