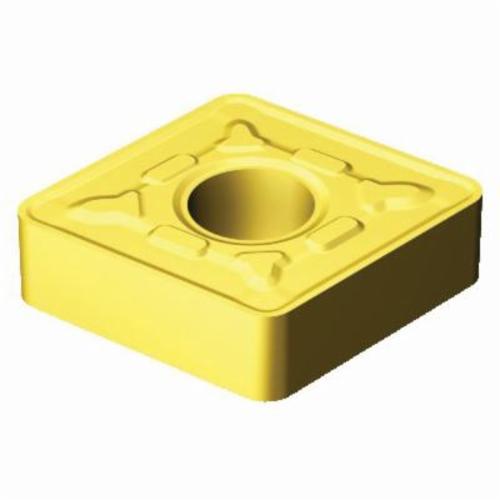

Sandvik Coromant 5724405 T-Max® P Negative Basic Shape Turning Insert, CNMG 432-MR 2015, C-80 deg Diamond, CNMG Insert

CNMG Turning Inserts
303738 MFG #: 5724405
Sandvik Coromant
14.39000 / ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 7.6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, MR Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 2015, ANSI Code: CNMG 432-MR 2015, ISO Code: CNMG 12 04 08-MR 2015, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
  • Features
Straight hole and non-flat surface clamping interface
20 life cycle state
2-side cutting
+/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance
ER treated cutting edge
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
For external turning operations and internal machining
0.15 - 0.55 mm/r cutting feed
