Sandvik Coromant

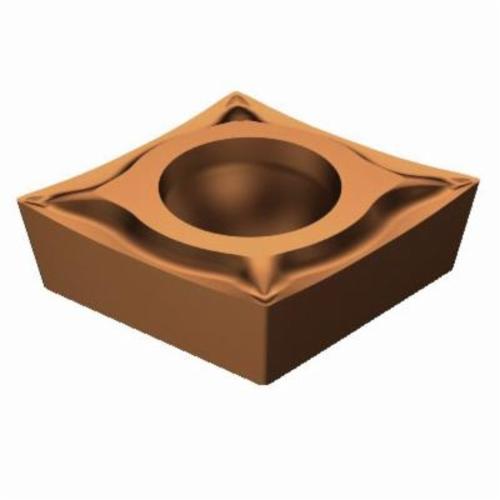

Sandvik Coromant 5724068 CoroTurn® 107 Basic Shape Positive Turning Insert, CCGT 2(1.5)1-UM 1115, C-80 deg Diamond
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5724068 CoroTurn® 107 Basic Shape Positive Turning Insert, CCGT 2(1.5)1-UM 1115, C-80 deg Diamond
SKU471842
MFGR #5724068
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, CCGT Insert, C-80 deg Diamond, 2 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 0.2538 in Length, UM Chipbreaker, 0.0156 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: CCGT 2(1.5)1-UM 1115, ISO Code: CCGT 06 02 04-UM 1115, 80 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/N/S
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, CCGT Insert, C-80 deg Diamond, 2 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 0.2538 in Length, UM Chipbreaker, 0.0156 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: CCGT 2(1.5)1-UM 1115, ISO Code: CCGT 06 02 04-UM 1115, 80 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/N/S
Alternate Catalog Number CCGT 2(1.5)1-UM 1115 ANSI Code CCGT 2(1.5)1-UM 1115 Catalog Number 5724068 Corner Radius 0.0156 in Country of Origin IN Finish PVD-TiAlN+AlCr2O3 Coated Gross Weight Per Pack 5.0900 lb Hole Diameter 0.1102 in Included Angle 80 ° ISO Code CCGT 06 02 04-UM 1115 Item Group 130 Relief Angle 7 ° Series CoroTurn® 107 Thickness 0.0937 in UPC 11 69826246553 UPC 12 69826246553 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker UM Cutting Direction Neutral For Use On Stainless Steel, Non-Ferrous Materials and Heat Resistant Super Alloys and Titanium Inscribed Circle 1/4 in Insert Size 2(1.5)1 Insert Style CCGT Manufacturer's Grade 1115 Material Carbide Material Grade M, N, S Maximum Depth of Cut 1.4 mm Rake Positive Seat Size 06 Shape Diamond
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Alternate Catalog Number | CCGT 2(1.5)1-UM 1115 |
| ANSI Code | CCGT 2(1.5)1-UM 1115 |
| Catalog Number | 5724068 |
| Corner Radius | 0.0156 in |
| Country of Origin | IN |
| Finish | PVD-TiAlN+AlCr2O3 Coated |
| Gross Weight Per Pack | 5.0900 lb |
| Hole Diameter | 0.1102 in |
| Included Angle | 80 ° |
| ISO Code | CCGT 06 02 04-UM 1115 |
| Item Group | 130 |
| Relief Angle | 7 ° |
| Series | CoroTurn® 107 |
| Thickness | 0.0937 in |
| UPC 11 | 69826246553 |
| UPC 12 | 69826246553 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | UM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Non-Ferrous Materials and Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 1/4 in |
| Insert Size | 2(1.5)1 |
| Insert Style | CCGT |
| Manufacturer's Grade | 1115 |
| Material | Carbide |
| Material Grade | M, N, S |
| Maximum Depth of Cut | 1.4 mm |
| Rake | Positive |
| Seat Size | 06 |
| Shape | Diamond |
