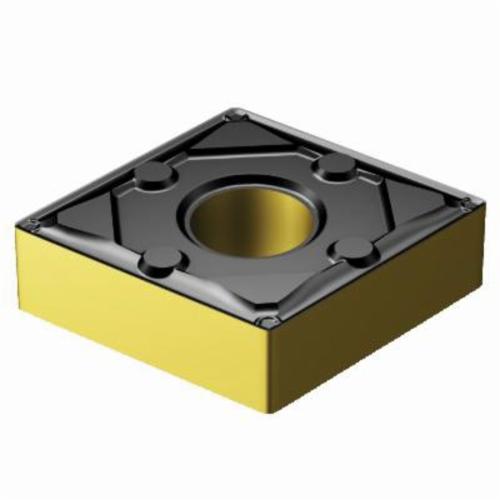

Sandvik Coromant 5724051 T-Max® P Negative Basic Shape Turning Insert, CNMG 431-WF 5015, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5724051 T-Max® P Negative Basic Shape Turning Insert, CNMG 431-WF 5015, C-80 deg Diamond, CNMG Insert
SKU58762
MFGR #5724051
Your Cost: $18.26/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 2 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, WF Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 5015, ANSI Code: CNMG 431-WF 5015, ISO Code: CNMG 12 04 04-WF 5015, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 2 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, WF Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 5015, ANSI Code: CNMG 431-WF 5015, ISO Code: CNMG 12 04 04-WF 5015, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: K/P
Alternate Catalog Number CNMG 431-WF 5015 ANSI Code CNMG 431-WF 5015 Catalog Number 5724051 Corner Radius 0.0156 in Country of Origin JP Finish Uncoated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 80 deg LB ISO Code CNMG 12 04 04-WF 5015 Item Group 110 Length 0.5077 in Relief Angle 0 deg Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape UPC 11 69826201232 UPC 12 69826201232 Width WF Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker WF Inscribed Circle 1/2 in Insert Size C - 80 deg Diamond Insert Style CNMG Manufacturer's Grade 5015 Material Carbide Material Grade K/P Maximum Depth of Cut 2 mm Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 20 life cycle state 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining Wiper technology for high feed machining Improved machining economy Excellent surface finish Eliminate expensive grinding operations Undisturbed production Less need for supervision 0.05 - 0.25 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 431-WF 5015 |
| ANSI Code | CNMG 431-WF 5015 |
| Catalog Number | 5724051 |
| Corner Radius | 0.0156 in |
| Country of Origin | JP |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 80 deg LB |
| ISO Code | CNMG 12 04 04-WF 5015 |
| Item Group | 110 |
| Length | 0.5077 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826201232 |
| UPC 12 | 69826201232 |
| Width | WF |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | WF |
| Inscribed Circle | 1/2 in |
| Insert Size | C - 80 deg Diamond |
| Insert Style | CNMG |
| Manufacturer's Grade | 5015 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | 2 mm |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 20 life cycle state |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| Wiper technology for high feed machining |
| Improved machining economy |
| Excellent surface finish |
| Eliminate expensive grinding operations |
| Undisturbed production |
| Less need for supervision |
| 0.05 - 0.25 mm/r cutting feed |
