Sandvik Coromant

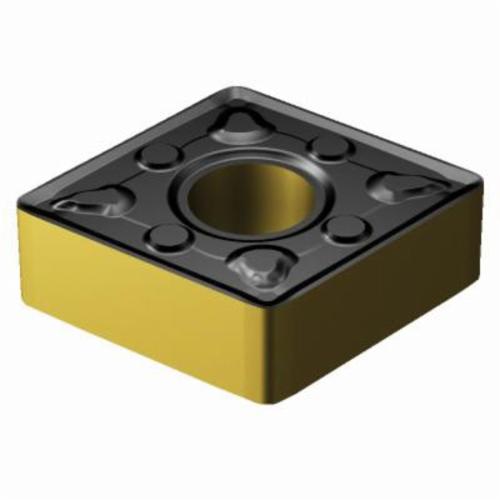

Sandvik Coromant 5724040 T-Max® P Negative Basic Shape Turning Insert, CNMG 432-WM 3210, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5724040 T-Max® P Negative Basic Shape Turning Insert, CNMG 432-WM 3210, C-80 deg Diamond, CNMG Insert
SKU487803
MFGR #5724040
Your Cost: $18.59/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, WM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: CNMG 432-WM 3210, ISO Code: CNMG 12 04 08-WM 3210, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, WM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: CNMG 432-WM 3210, ISO Code: CNMG 12 04 08-WM 3210, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number CNMG 432-WM 3210 ANSI Code CNMG 432-WM 3210 Catalog Number 5724040 Corner Radius 0.0312 in Country of Origin US Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 80 deg ISO Code CNMG 12 04 08-WM 3210 Item Group 110 Length 0.5077 in Relief Angle 0 deg LB Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape UPC 11 69826224357 UPC 12 69826224357 Width 80 deg Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker WM Inscribed Circle 1/2 in Insert Size 0.793 mm Insert Style CNMG Manufacturer's Grade 3210 Material Carbide Material Grade K Maximum Depth of Cut 5 mm Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 20 life cycle state 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining Wiper technology for high feed machining Improved machining economy Excellent surface finish Eliminate expensive grinding operations Undisturbed production Less need for supervision 0.15 - 0.6 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 432-WM 3210 |
| ANSI Code | CNMG 432-WM 3210 |
| Catalog Number | 5724040 |
| Corner Radius | 0.0312 in |
| Country of Origin | US |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 80 deg |
| ISO Code | CNMG 12 04 08-WM 3210 |
| Item Group | 110 |
| Length | 0.5077 in |
| Relief Angle | 0 deg LB |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826224357 |
| UPC 12 | 69826224357 |
| Width | 80 deg |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | WM |
| Inscribed Circle | 1/2 in |
| Insert Size | 0.793 mm |
| Insert Style | CNMG |
| Manufacturer's Grade | 3210 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 5 mm |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 20 life cycle state |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| Wiper technology for high feed machining |
| Improved machining economy |
| Excellent surface finish |
| Eliminate expensive grinding operations |
| Undisturbed production |
| Less need for supervision |
| 0.15 - 0.6 mm/r cutting feed |
