Sandvik Coromant

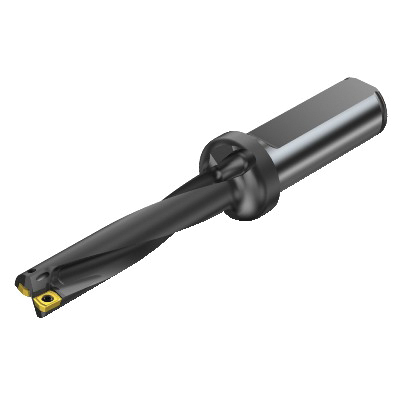

Sandvik Coromant 5724025 CoroDrill® 880 Insert Drill, 1-3/8 in Drill, 1-1/2 in Shank, 10.8029 in AOL, 6-7/8 in D Maximum Drill, 5
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5724025 CoroDrill® 880 Insert Drill, 1-3/8 in Drill, 1-1/2 in Shank, 10.8029 in AOL, 6-7/8 in D Maximum Drill, 5
SKU448164
MFGR #5724025
$/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1-3/8 in Drill, 1-1/2 in Shank Dia, Cylinder Shank, 6-7/8 in Maximum Drill Depth, 10.8029 in Overall Length, 5 Drill Depth by Dia Ratio, Insert Compatibility: 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM), 6-7/8 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1-3/8 in Drill, 1-1/2 in Shank Dia, Cylinder Shank, 6-7/8 in Maximum Drill Depth, 10.8029 in Overall Length, 5 Drill Depth by Dia Ratio, Insert Compatibility: 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM), 6-7/8 in Flute Length
Alternate Catalog Number A880-D1375LX38-05 Catalog Number 5724025 Country of Origin US Drill Depth by Diameter Ratio 5 Gage Insert CoroDrill® 880 Gross Weight Per Pack 2.8600 lb Item Group 465 Modular Connection Size 1-1/2 Number of Drill Inserts 38.1 mm Overall Length 10.8029 in Series CoroDrill® 880 Type 174.625 mm UPC 11 69826234669 UPC 12 69826234669 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 174.625 mm Drill Size 1-3/8 in Flute Length 6-7/8 in Insert Compatibility 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM) Maximum Drill Depth 6-7/8 in Shank Diameter 1-1/2 in Shank Length Cylindrical Shank Type Cylinder 203.8378 mm L functional 38.1 mm Dia body 70 mm L clamping 0.5560 mm L point 10500 r/min 0 - 0.4 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 13 deg right hand helix flute 5 deg rake orthogonal 36.1 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 199.371 mm L chip flute 20 life cycle state 178.816 mm L steel body
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | A880-D1375LX38-05 |
| Catalog Number | 5724025 |
| Country of Origin | US |
| Drill Depth by Diameter Ratio | 5 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 2.8600 lb |
| Item Group | 465 |
| Modular Connection Size | 1-1/2 |
| Number of Drill Inserts | 38.1 mm |
| Overall Length | 10.8029 in |
| Series | CoroDrill® 880 |
| Type | 174.625 mm |
| UPC 11 | 69826234669 |
| UPC 12 | 69826234669 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 174.625 mm |
| Drill Size | 1-3/8 in |
| Flute Length | 6-7/8 in |
| Insert Compatibility | 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM) |
| Maximum Drill Depth | 6-7/8 in |
| Shank Diameter | 1-1/2 in |
| Shank Length | Cylindrical |
| Shank Type | Cylinder |
| 203.8378 mm L functional |
| 38.1 mm Dia body |
| 70 mm L clamping |
| 0.5560 mm L point |
| 10500 r/min |
| 0 - 0.4 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 13 deg right hand helix flute |
| 5 deg rake orthogonal |
| 36.1 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 199.371 mm L chip flute |
| 20 life cycle state |
| 178.816 mm L steel body |
