Sandvik Coromant

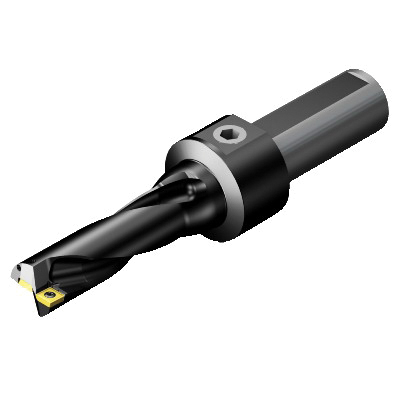

Sandvik Coromant 5723986 CoroDrill® 880 Insert Drill, 1.437 in Drill, 1-1/2 in Shank, 4.3109 in Maximum Drill, 3
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5723986 CoroDrill® 880 Insert Drill, 1.437 in Drill, 1-1/2 in Shank, 4.3109 in Maximum Drill, 3
SKU486076
MFGR #5723986
Your Cost: $903.39/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1.437 in Drill, 1-1/2 in Shank Dia, Cylinder Shank, 4.3109 in Maximum Drill Depth, 9.792 in Overall Length, 3 Drill Depth by Dia Ratio, Insert Compatibility: 880-070406H-C-GM (MIIDM) and 880-0704W06H-P-GM (MIIDM), 4.3109 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1.437 in Drill, 1-1/2 in Shank Dia, Cylinder Shank, 4.3109 in Maximum Drill Depth, 9.792 in Overall Length, 3 Drill Depth by Dia Ratio, Insert Compatibility: 880-070406H-C-GM (MIIDM) and 880-0704W06H-P-GM (MIIDM), 4.3109 in Flute Length
Alternate Catalog Number A880-D1437P38-03 Catalog Number 5723986 Country of Origin US Drill Depth by Diameter Ratio 3 Gage Insert CoroDrill® 880 Gross Weight Per Pack 3.5700 lb Item Group 465 Modular Connection Size 1-1/2 Number of Drill Inserts 38.1 mm Overall Length 9.792 in Series CoroDrill® 880 Type 3 UPC 11 69826234676 UPC 12 69826234676 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 880-070406H-C-GM(MIIDM),880-0704W06H-P-GM(MIIDM) Drill Size 1.437 in Flute Length 4.3109 in Insert Compatibility 880-070406H-C-GM (MIIDM) and 880-0704W06H-P-GM (MIIDM) Maximum Drill Depth 4.3109 in Shank Diameter 1-1/2 in Shank Length Cylindrical Shank Type Cylinder 171.8401 mm L functional 38.1 mm Dia body 75.7 mm L clamping 0.6767 mm L point 16000 r/min 0 - 0.25 mm achievable hole tolerance Decentral over flange and axial coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 22 deg right hand helix flute 5 deg rake orthogonal 0 deg inclination, 2 flutes 88 deg cutting edge 135.49508 mm L chip flute 20 life cycle state 113.9952 mm L steel body Features the new Sandvik Coromant innovation, Step technology
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | A880-D1437P38-03 |
| Catalog Number | 5723986 |
| Country of Origin | US |
| Drill Depth by Diameter Ratio | 3 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 3.5700 lb |
| Item Group | 465 |
| Modular Connection Size | 1-1/2 |
| Number of Drill Inserts | 38.1 mm |
| Overall Length | 9.792 in |
| Series | CoroDrill® 880 |
| Type | 3 |
| UPC 11 | 69826234676 |
| UPC 12 | 69826234676 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 880-070406H-C-GM(MIIDM),880-0704W06H-P-GM(MIIDM) |
| Drill Size | 1.437 in |
| Flute Length | 4.3109 in |
| Insert Compatibility | 880-070406H-C-GM (MIIDM) and 880-0704W06H-P-GM (MIIDM) |
| Maximum Drill Depth | 4.3109 in |
| Shank Diameter | 1-1/2 in |
| Shank Length | Cylindrical |
| Shank Type | Cylinder |
| 171.8401 mm L functional |
| 38.1 mm Dia body |
| 75.7 mm L clamping |
| 0.6767 mm L point |
| 16000 r/min |
| 0 - 0.25 mm achievable hole tolerance |
| Decentral over flange and axial coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 22 deg right hand helix flute |
| 5 deg rake orthogonal |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 135.49508 mm L chip flute |
| 20 life cycle state |
| 113.9952 mm L steel body |
| Features the new Sandvik Coromant innovation, Step technology |
