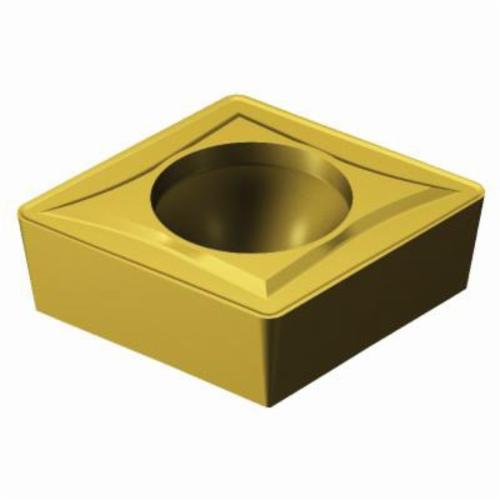

Sandvik Coromant 5723860 CoroTurn® 107 Basic Shape Positive Turning Insert, CCMT 3(2.5)1-UR 235, C-80 deg Diamond, 235
Custom_Product_Images_Illustration
Sandvik Coromant 5723860 CoroTurn® 107 Basic Shape Positive Turning Insert, CCMT 3(2.5)1-UR 235, C-80 deg Diamond, 235
SKU1153361
MFGR #5723860
Your Cost: $14.56/ea
List: Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, CCMT Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.3807 in Length, UR Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 235, ANSI Code: CCMT 3(2.5)1-UR 235, ISO Code: CCMT 09 T3 04-UR 235, 80 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M/P
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, CCMT Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.3807 in Length, UR Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 235, ANSI Code: CCMT 3(2.5)1-UR 235, ISO Code: CCMT 09 T3 04-UR 235, 80 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M/P
Alternate Catalog Number CCMT 3(2.5)1-UR 235 ANSI Code CCMT 3(2.5)1-UR 235 Catalog Number 5723860 Corner Radius 0.0156 in Country of Origin IN Finish CVD-TiCN+TiN Coated Gross Weight Per Pack 0.1100 lb Hole Diameter 0.1732 in Included Angle 80 ° ISO Code CCMT 09 T3 04-UR 235 Item Group 130 Relief Angle 7 ° Series CoroTurn® 107 Thickness 0.1562 in UPC 11 69826272157 UPC 12 69826272157 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker UR Cutting Direction Neutral For Use On Stainless Steel and Steel Inscribed Circle 3/8 in Insert Size 3(2.5)1 Insert Style CCMT Manufacturer's Grade 235 Material Carbide Material Grade M, P Maximum Depth of Cut 4 mm Rake Positive Seat Size 09 Shape Diamond Excellent surface finish Reliable and secure machining, even in roughing applications Possibility to optimize by using damped Silent Tools™ ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external machining of small, long, slender components and internal machining The positive insert shape combines low cutting forces with good edge strength The screw clamping ensures stability and unobstructed chip flow 0.1 - 0.3 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CCMT 3(2.5)1-UR 235 |
| ANSI Code | CCMT 3(2.5)1-UR 235 |
| Catalog Number | 5723860 |
| Corner Radius | 0.0156 in |
| Country of Origin | IN |
| Finish | CVD-TiCN+TiN Coated |
| Gross Weight Per Pack | 0.1100 lb |
| Hole Diameter | 0.1732 in |
| Included Angle | 80 ° |
| ISO Code | CCMT 09 T3 04-UR 235 |
| Item Group | 130 |
| Relief Angle | 7 ° |
| Series | CoroTurn® 107 |
| Thickness | 0.1562 in |
| UPC 11 | 69826272157 |
| UPC 12 | 69826272157 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | UR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel and Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | 3(2.5)1 |
| Insert Style | CCMT |
| Manufacturer's Grade | 235 |
| Material | Carbide |
| Material Grade | M, P |
| Maximum Depth of Cut | 4 mm |
| Rake | Positive |
| Seat Size | 09 |
| Shape | Diamond |
| Excellent surface finish |
| Reliable and secure machining, even in roughing applications |
| Possibility to optimize by using damped Silent Tools™ |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.1 - 0.3 mm/r cutting feed |
| 20 life cycle state |
