Sandvik Coromant

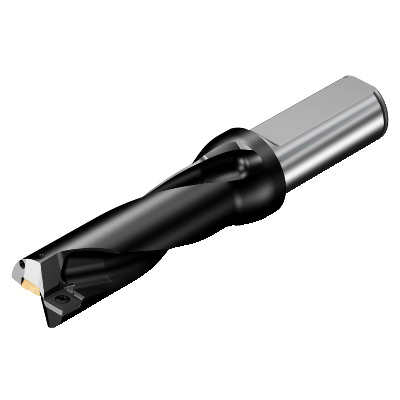

Sandvik Coromant 5723776 CoroDrill® 880 Insert Drill, 1.062 in Drill, 1-1/4 in Shank, 6.5262 in AOL, 3.1859 in D Maximum Drill, 3
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5723776 CoroDrill® 880 Insert Drill, 1.062 in Drill, 1-1/4 in Shank, 6.5262 in AOL, 3.1859 in D Maximum Drill, 3
SKU1165537
MFGR #5723776
Your Cost: $892.62/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1.062 in Drill, 1-1/4 in Shank Dia, Cylinder Shank, 3.1859 in Maximum Drill Depth, 6.5262 in Overall Length, 3 Drill Depth by Dia Ratio, Insert Compatibility: 880-050305H-C-GM (MIIDM) and 880-0503W05H-P-GM (MIIDM), 3.1859 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1.062 in Drill, 1-1/4 in Shank Dia, Cylinder Shank, 3.1859 in Maximum Drill Depth, 6.5262 in Overall Length, 3 Drill Depth by Dia Ratio, Insert Compatibility: 880-050305H-C-GM (MIIDM) and 880-0503W05H-P-GM (MIIDM), 3.1859 in Flute Length
Alternate Catalog Number A880-D1062LX31-03 Catalog Number 5723776 Country of Origin US Drill Depth by Diameter Ratio 3XD Gross Weight Per Pack 1.5900 lb Item Group 465 Modular Connection Size 1-1/4 in Number of Drill Inserts 2 Overall Length 6.526 in Series CoroDrill® 880 Standards ISO 13399 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 1.062 in Drill Size 1.062 in Flute Length 3.345 in Insert Compatibility 880-050305H-C-GM (MIIDM), 880-0503W05H-P-GM (MIIDM) Maximum Drill Depth 3.186 in Shank Diameter 1-1/4 in Shank Length 2.3622 in Shank Type Cylindrical Through Coolant Yes Wiper geometry for best surface finish or higher feed possibilities|Easy identification due to laser marking with drill insert and screw codes on the drill shank|Two or four cutting edges depending on drill diameter|Optimized chip channels for accelerated chip evacuation|Optimized geometries assure high performance in most materials|Optimized grades assure longer insert tool life 31.75 mm Dia body 60 mm L clamping 0.5305 mm L point 16000 r/min 0 - 0.25 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 22 deg right hand helix flute 5 deg rake orthogonal 29.8 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 100.74788 mm L chip flute 20 life cycle state 84.963 mm L steel body
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | A880-D1062LX31-03 |
| Catalog Number | 5723776 |
| Country of Origin | US |
| Drill Depth by Diameter Ratio | 3XD |
| Gross Weight Per Pack | 1.5900 lb |
| Item Group | 465 |
| Modular Connection Size | 1-1/4 in |
| Number of Drill Inserts | 2 |
| Overall Length | 6.526 in |
| Series | CoroDrill® 880 |
| Standards | ISO 13399 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 1.062 in |
| Drill Size | 1.062 in |
| Flute Length | 3.345 in |
| Insert Compatibility | 880-050305H-C-GM (MIIDM), 880-0503W05H-P-GM (MIIDM) |
| Maximum Drill Depth | 3.186 in |
| Shank Diameter | 1-1/4 in |
| Shank Length | 2.3622 in |
| Shank Type | Cylindrical |
| Through Coolant | Yes |
| Wiper geometry for best surface finish or higher feed possibilities|Easy identification due to laser marking with drill insert and screw codes on the drill shank|Two or four cutting edges depending on drill diameter|Optimized chip channels for accelerated chip evacuation|Optimized geometries assure high performance in most materials|Optimized grades assure longer insert tool life |
| 31.75 mm Dia body |
| 60 mm L clamping |
| 0.5305 mm L point |
| 16000 r/min |
| 0 - 0.25 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 22 deg right hand helix flute |
| 5 deg rake orthogonal |
| 29.8 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 100.74788 mm L chip flute |
| 20 life cycle state |
| 84.963 mm L steel body |
