Sandvik Coromant

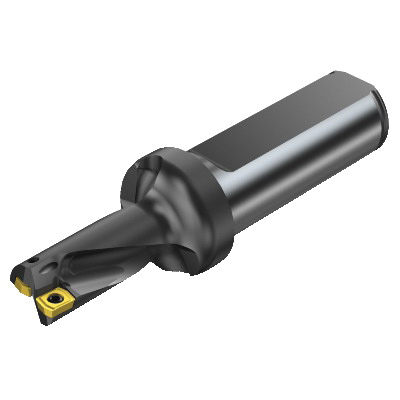

Sandvik Coromant 5723674 CoroDrill® 880 Insert Drill, 0.937 in Drill, 1 in Shank, 4.9917 in AOL, 1.874 in D Maximum Drill, 2
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5723674 CoroDrill® 880 Insert Drill, 0.937 in Drill, 1 in Shank, 4.9917 in AOL, 1.874 in D Maximum Drill, 2
SKU462411
MFGR #5723674
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.937 in Drill, 1 in Shank Dia, Cylinder Shank, 1.874 in Maximum Drill Depth, 4.9917 in Overall Length, 2 Drill Depth by Dia Ratio, Insert Compatibility: 880-040305H-C-GM (MIIDM) and 880-0403W05H-P-GM (MIIDM), 1.874 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.937 in Drill, 1 in Shank Dia, Cylinder Shank, 1.874 in Maximum Drill Depth, 4.9917 in Overall Length, 2 Drill Depth by Dia Ratio, Insert Compatibility: 880-040305H-C-GM (MIIDM) and 880-0403W05H-P-GM (MIIDM), 1.874 in Flute Length
Alternate Catalog Number A880-D0937LX25-02 Catalog Number 5723674 Country of Origin US Drill Depth by Diameter Ratio 2 Gage Insert CoroDrill® 880 Gross Weight Per Pack 0.6600 lb Item Group 465 Number of Drill Inserts 25.4 mm Overall Length 4.9917 in Series CoroDrill® 880 Type 47.5996 mm UPC 11 69826228048 UPC 12 69826228048 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 25.4 mm Drill Size 0.937 in Flute Length 1.874 in Insert Compatibility 880-040305H-C-GM (MIIDM) and 880-0403W05H-P-GM (MIIDM) Maximum Drill Depth 1.874 in Shank Diameter 1 in Shank Length 2 Shank Type Cylinder 70.3296 mm L functional 25.4 mm Dia body 56 mm L clamping 0.4602 mm L point 21500 r/min 0 - 0.25 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 22 deg right hand helix flute 5 deg rake orthogonal 23.4 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 65.77208 mm L chip flute 20 life cycle state 51.8922 mm L steel body
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | A880-D0937LX25-02 |
| Catalog Number | 5723674 |
| Country of Origin | US |
| Drill Depth by Diameter Ratio | 2 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 0.6600 lb |
| Item Group | 465 |
| Number of Drill Inserts | 25.4 mm |
| Overall Length | 4.9917 in |
| Series | CoroDrill® 880 |
| Type | 47.5996 mm |
| UPC 11 | 69826228048 |
| UPC 12 | 69826228048 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 25.4 mm |
| Drill Size | 0.937 in |
| Flute Length | 1.874 in |
| Insert Compatibility | 880-040305H-C-GM (MIIDM) and 880-0403W05H-P-GM (MIIDM) |
| Maximum Drill Depth | 1.874 in |
| Shank Diameter | 1 in |
| Shank Length | 2 |
| Shank Type | Cylinder |
| 70.3296 mm L functional |
| 25.4 mm Dia body |
| 56 mm L clamping |
| 0.4602 mm L point |
| 21500 r/min |
| 0 - 0.25 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 22 deg right hand helix flute |
| 5 deg rake orthogonal |
| 23.4 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 65.77208 mm L chip flute |
| 20 life cycle state |
| 51.8922 mm L steel body |
