Sandvik Coromant

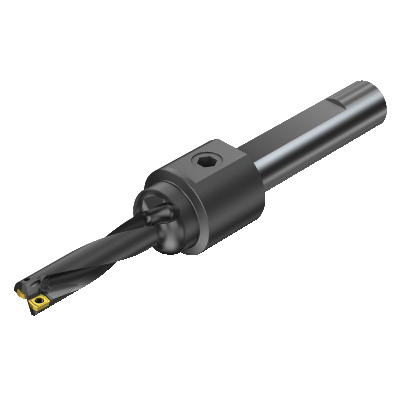

Sandvik Coromant 5723651 CoroDrill® 880 Insert Drill, 0.812 in Drill, 1 in Shank, 8.314 in AOL, 3.2479 in D Maximum Drill, 4
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5723651 CoroDrill® 880 Insert Drill, 0.812 in Drill, 1 in Shank, 8.314 in AOL, 3.2479 in D Maximum Drill, 4
SKU255880
MFGR #5723651
Your Cost: $737.53/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.812 in Drill, 1 in Shank Dia, Cylinder Shank, 3.2479 in Maximum Drill Depth, 8.314 in Overall Length, 4 Drill Depth by Dia Ratio, Insert Compatibility: 880-040305H-C-GM (MIIDM) and 880-0403W05H-P-GM (MIIDM), 3.2479 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.812 in Drill, 1 in Shank Dia, Cylinder Shank, 3.2479 in Maximum Drill Depth, 8.314 in Overall Length, 4 Drill Depth by Dia Ratio, Insert Compatibility: 880-040305H-C-GM (MIIDM) and 880-0403W05H-P-GM (MIIDM), 3.2479 in Flute Length
Catalog Number 5723651 Country of Origin US Drill Depth by Diameter Ratio 4 Gage Insert CoroDrill® 880 Gross Weight Per Pack 1.5400 lb Modular Connection Size 1 Number of Drill Inserts 25.4 mm Overall Length 8.314 in Series CoroDrill® 880 Type 25.4 mm UPC 11 69826231318 UPC 12 69826231318 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter Cylindrical Drill Size 0.812 in Flute Length 3.2479 in Insert Compatibility 880-040305H-C-GM (MIIDM) and 880-0403W05H-P-GM (MIIDM) Maximum Drill Depth 3.2479 in Shank Diameter 1 in Shank Length 880-040305H-C-GM(MIIDM),880-0403W05H-P-GM(MIIDM) Shank Type Cylinder 134.571 mm L functional 25.4 mm Dia body 75.7 mm L clamping 0.4046 mm L point 17500 r/min 0 - 0.4 mm achievable hole tolerance Decentral over flange and axial coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 17.5 deg right hand helix flute 5 deg rake orthogonal 0 deg inclination, 2 flutes 88 deg cutting edge 97.95388 mm L chip flute 20 life cycle state 85.979 mm L steel body Features the new Sandvik Coromant innovation, Step technology
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 5723651 |
| Country of Origin | US |
| Drill Depth by Diameter Ratio | 4 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 1.5400 lb |
| Modular Connection Size | 1 |
| Number of Drill Inserts | 25.4 mm |
| Overall Length | 8.314 in |
| Series | CoroDrill® 880 |
| Type | 25.4 mm |
| UPC 11 | 69826231318 |
| UPC 12 | 69826231318 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | Cylindrical |
| Drill Size | 0.812 in |
| Flute Length | 3.2479 in |
| Insert Compatibility | 880-040305H-C-GM (MIIDM) and 880-0403W05H-P-GM (MIIDM) |
| Maximum Drill Depth | 3.2479 in |
| Shank Diameter | 1 in |
| Shank Length | 880-040305H-C-GM(MIIDM),880-0403W05H-P-GM(MIIDM) |
| Shank Type | Cylinder |
| 134.571 mm L functional |
| 25.4 mm Dia body |
| 75.7 mm L clamping |
| 0.4046 mm L point |
| 17500 r/min |
| 0 - 0.4 mm achievable hole tolerance |
| Decentral over flange and axial coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 17.5 deg right hand helix flute |
| 5 deg rake orthogonal |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 97.95388 mm L chip flute |
| 20 life cycle state |
| 85.979 mm L steel body |
| Features the new Sandvik Coromant innovation, Step technology |
