Sandvik Coromant

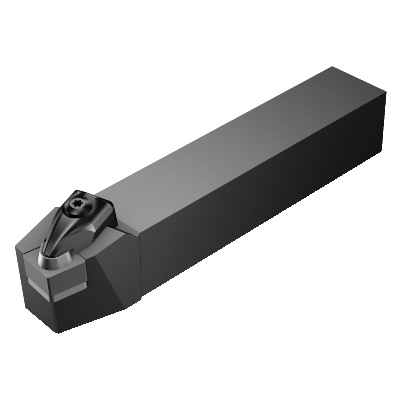

Sandvik Coromant 5723068 T-Max Turning Shank Tool, CCBNR/L Tool Holder, CNGN 16 07 12 Insert, 15 deg Lead, Rectangle Shank, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5723068 T-Max Turning Shank Tool, CCBNR/L Tool Holder, CNGN 16 07 12 Insert, 15 deg Lead, Rectangle Shank, Left Hand
SKU1241067
MFGR #5723068
Your Cost: $206.77/ea
Sandvik Coromant Turning Shank Tool, Series: T-Max, CCBNR/L Tool Holder, 6.6929 in Overall Length, Rectangle Shank, 1.2598 in H x 0.9842 in W Shank, Insert Compatibility: CNGN 16 07 12, 5/8 Insert Seat, Left Hand Cutting, 15 deg Lead Angle, ANSI Code: CCBNL 3225P 16-4, ISO Code: CCBNL 3225P 16-4, -6 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: T-Max, CCBNR/L Tool Holder, 6.6929 in Overall Length, Rectangle Shank, 1.2598 in H x 0.9842 in W Shank, Insert Compatibility: CNGN 16 07 12, 5/8 Insert Seat, Left Hand Cutting, 15 deg Lead Angle, ANSI Code: CCBNL 3225P 16-4, ISO Code: CCBNL 3225P 16-4, -6 deg Rake, Steel
ANSI Code CCBNL 3225P 16-4 Catalog Number 5723068 Country of Origin SE Gross Weight Per Pack 2.4800 lb Insert Seat Size 5/8 ISO Code CCBNL 3225P 16-4 Material Steel Series T-Max Shank Type Rectangle UPC 11 69826219661 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility CNGN 16 07 12 Lead Angle 15 deg Overall Length 6.6929 in Rake -6 deg Shank Size 1.2598 in H x 0.9842 in W Tool Holder Style CCBNR/L 0 deg body machine side 20 life cycle state 0 deg body workpiece side Without coolant entry Floating wedge, RC flat top No coolant exit 75 deg cutting edge -6 deg inclination 41.6 mm maximum overhang 0 deg ramping C-80 deg diamond insert shape 6.4 Nm torque 32 mm H functional 22 mm W functional 170 mm L functional
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | CCBNL 3225P 16-4 |
| Catalog Number | 5723068 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.4800 lb |
| Insert Seat Size | 5/8 |
| ISO Code | CCBNL 3225P 16-4 |
| Material | Steel |
| Series | T-Max |
| Shank Type | Rectangle |
| UPC 11 | 69826219661 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | CNGN 16 07 12 |
| Lead Angle | 15 deg |
| Overall Length | 6.6929 in |
| Rake | -6 deg |
| Shank Size | 1.2598 in H x 0.9842 in W |
| Tool Holder Style | CCBNR/L |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC flat top |
| No coolant exit |
| 75 deg cutting edge |
| -6 deg inclination |
| 41.6 mm maximum overhang |
| 0 deg ramping |
| C-80 deg diamond insert shape |
| 6.4 Nm torque |
| 32 mm H functional |
| 22 mm W functional |
| 170 mm L functional |
