Hubbell Wiring Device-Kellems
SWITCH,SNAPCONN,SP,20A120/277V,IV,NA

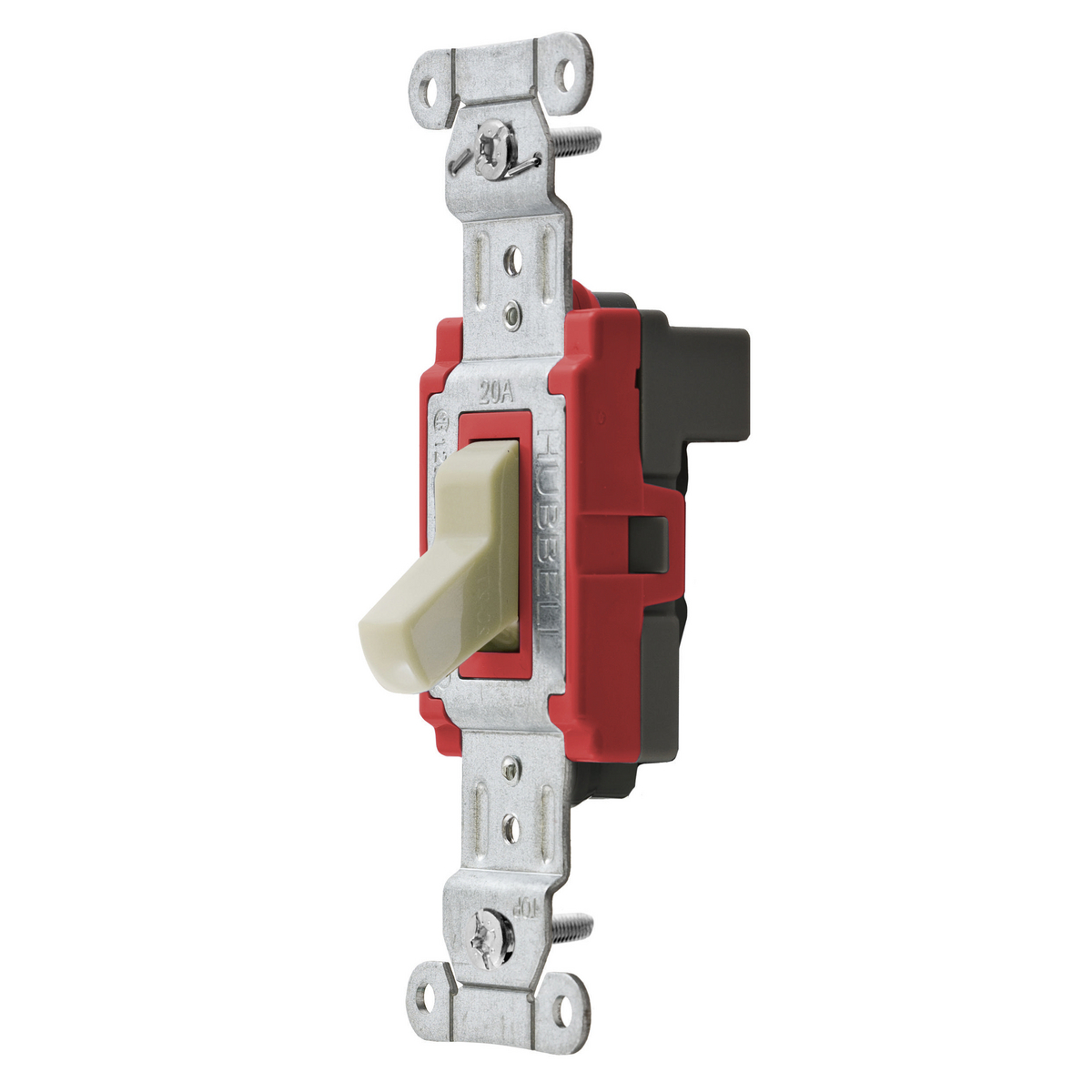

Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
SWITCH,SNAPCONN,SP,20A120/277V,IV,NA
SKU648982
MFGR #SNAP1221INA
Your Cost: $11.64/ea
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, SinglePole, 20A 120/277V AC, Ivory, North American
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, SinglePole, 20A 120/277V AC, Ivory, North American
Action Positive Snap Actuator Toggle Application SNAPConnect Heavy Duty ARRA Compliant C Buy American Compliant C Catalog Number SNAP1221INA Color Ivory Connection Connectorized Contact Rating Per UL 20 Country of Origin US Currency USD Enclosure None Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509040 Height 1.70 in Height [Metric] 4.3180 cm Insulation None Length 4.30 in Length [Metric] 10.9220 cm Material Thermoplastic Mounting Screw Mount Number Of Poles 1 Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact Returnable Y Size Standard Sized Standard NEMA WD1, UL20 Standards CSA Certified, Federal Specification W-S-896, UL 20 Listed Sub Brand SNAPConnect Series Switch Type Toggle Type General Purpose Switches UNSPSC 39122211 UPC 11 78358518665 UPC 12 783585186658 Wattage 5,540 W Width 1.90 in Width [Metric] 4.8260 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20A Contact Configuration Two Position Voltage Rating 120/277 V SNAPConnect Heavy Duty Quick Connect Terminations Steel, zinc plated bridge is corrosion resistant Thread cleaning captive mounting screw Automatic self-grounding staple assures continuity to wall box Abuse resistant nylon toggle for heavy use applications Eliminates exposed live parts Stainless steel autoground clip 2 position Indoor Dry unless protected by additional means Specification grade 1 hp at 120 VAC, 2 hp at 208/240/277 VAC Nylon toggle UL 94-V2 flammability 5540 W power Positive snap action
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Positive Snap |
| Actuator | Toggle |
| Application | SNAPConnect Heavy Duty |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SNAP1221INA |
| Color | Ivory |
| Connection | Connectorized |
| Contact Rating | Per UL 20 |
| Country of Origin | US |
| Currency | USD |
| Enclosure | None |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509040 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Insulation | None |
| Length | 4.30 in |
| Length [Metric] | 10.9220 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| Number Of Poles | 1 |
| Operating Temperature | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Returnable | Y |
| Size | Standard Sized |
| Standard | NEMA WD1, UL20 |
| Standards | CSA Certified, Federal Specification W-S-896, UL 20 Listed |
| Sub Brand | SNAPConnect Series |
| Switch Type | Toggle |
| Type | General Purpose Switches |
| UNSPSC | 39122211 |
| UPC 11 | 78358518665 |
| UPC 12 | 783585186658 |
| Wattage | 5,540 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20A |
| Contact Configuration | Two Position |
| Voltage Rating | 120/277 V |
| SNAPConnect Heavy Duty |
| Quick Connect Terminations |
| Steel, zinc plated bridge is corrosion resistant |
| Thread cleaning captive mounting screw |
| Automatic self-grounding staple assures continuity to wall box |
| Abuse resistant nylon toggle for heavy use applications |
| Eliminates exposed live parts |
| Stainless steel autoground clip |
| 2 position |
| Indoor Dry unless protected by additional means |
| Specification grade |
| 1 hp at 120 VAC, 2 hp at 208/240/277 VAC |
| Nylon toggle |
| UL 94-V2 flammability |
| 5540 W power |
| Positive snap action |
