Hubbell Wiring Device-Kellems

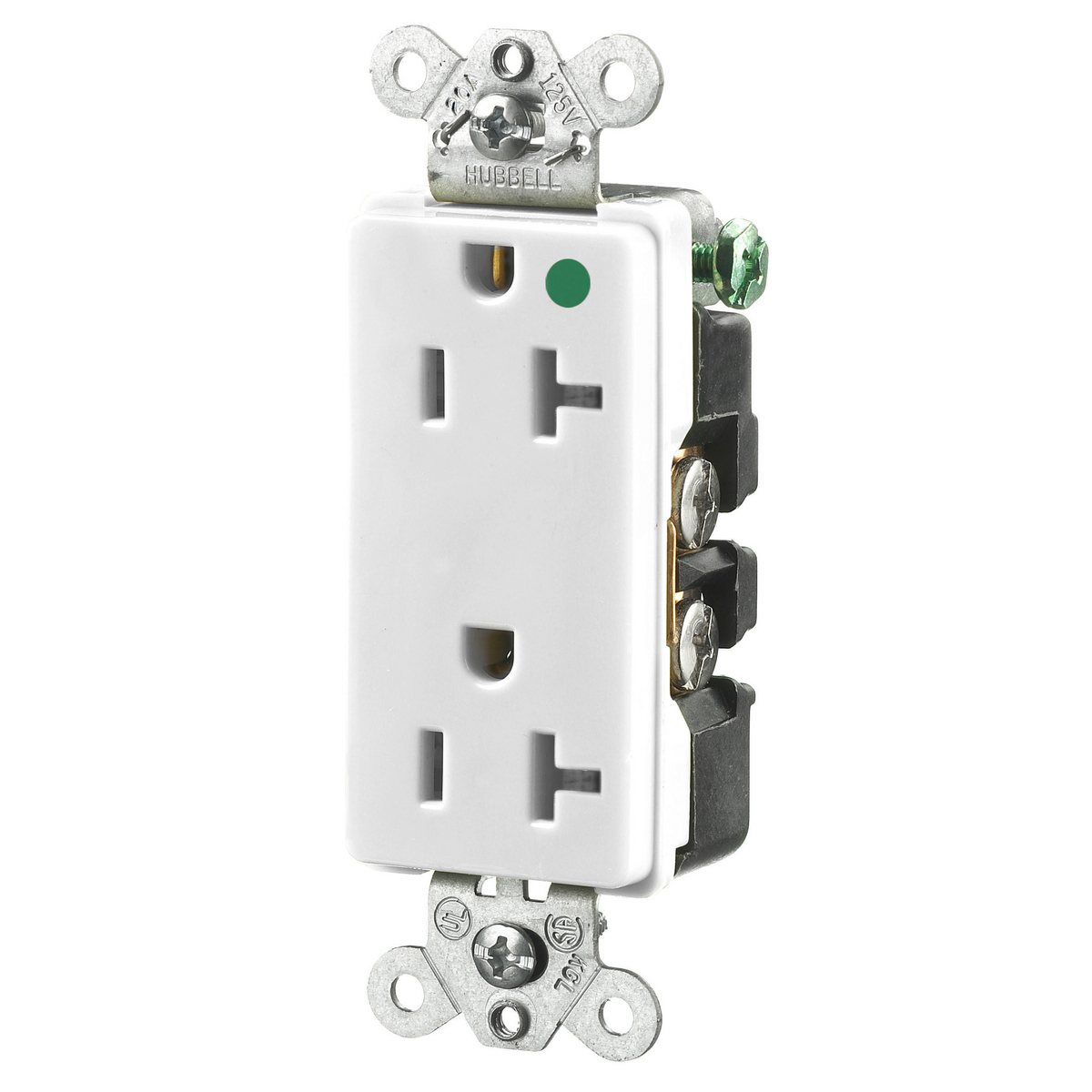

STYLE HG DUP RCPT, 20A 125V, 5-20R, WH
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
STYLE HG DUP RCPT, 20A 125V, 5-20R, WH
SKU282097
MFGR #HBL2182WA
Your Cost: $36.83/ea
Hubbell® StyleLine® Straight Blade Receptacle, Duplex, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Hospital Grade, -40 to 75 deg C, Back and Side Wired Terminal, Reinforced Polyethylene Terephthalate, White, 3.281 in H x 1.359 in W x 1.031 in D
Hubbell® StyleLine® Straight Blade Receptacle, Duplex, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Hospital Grade, -40 to 75 deg C, Back and Side Wired Terminal, Reinforced Polyethylene Terephthalate, White, 3.281 in H x 1.359 in W x 1.031 in D
Application Style Line Decorator Hospital Grade ARRA Compliant C Buy American Compliant C Catalog Number HBL2182WA Connection Back and Side Wired Screw Terminals Country of Origin PR Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.281 in H x 1.359 in W x 1.031 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Hospital Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 1 hp Length 4.20 in Length [Metric] 10.6680 cm Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Series Decorator Size 3.28 in x 1.36 in x 1.03 in Standard CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards UL 498, File No. E2186 Listed, UL 94-V-2, UL 94-V0, UL 94-5 Flammability RatingCSA 22.2 No. 42, 285 NEMA WD1/WD5/WD6 Compliant Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Type Duplex Receptacle UNSPSC 39121406 UPC 11 78358506074 UPC 12 783585060743 Wattage 2,500 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color White Number of Wires 3 Voltage Rating 125 VAC Style Line Decorator Hospital Grade Standard, Self Grounding Traditional face shape Withstands 2000 VAC dielectric voltage 14 to 10 AWG solid or stranded copper conductor terminal accommodation Smooth face Aesthetic Style Line® decorator design Triple wipe contacts PBT base, 0.031 in brass contacts 0.031 in brass ground contact Nickel plated steel clamping plate Certified for current interrupting at full rated current Brass terminal screws 0.05 in galvanized steel mounting strap Stainless steel automatic self-grounding staple Zinc plated steel mounting screws Indoor dry unless protected by additional means
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Style Line Decorator Hospital Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL2182WA |
| Connection | Back and Side Wired Screw Terminals |
| Country of Origin | PR |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.281 in H x 1.359 in W x 1.031 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Hospital |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 1 hp |
| Length | 4.20 in |
| Length [Metric] | 10.6680 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Series | Decorator |
| Size | 3.28 in x 1.36 in x 1.03 in |
| Standard | CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | UL 498, File No. E2186 Listed, UL 94-V-2, UL 94-V0, UL 94-5 Flammability RatingCSA 22.2 No. 42, 285 NEMA WD1/WD5/WD6 Compliant |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired |
| Type | Duplex Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358506074 |
| UPC 12 | 783585060743 |
| Wattage | 2,500 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 VAC |
| Style Line Decorator Hospital Grade |
| Standard, Self Grounding |
| Traditional face shape |
| Withstands 2000 VAC dielectric voltage |
| 14 to 10 AWG solid or stranded copper conductor terminal accommodation |
| Smooth face |
| Aesthetic Style Line® decorator design |
| Triple wipe contacts |
| PBT base, 0.031 in brass contacts |
| 0.031 in brass ground contact |
| Nickel plated steel clamping plate |
| Certified for current interrupting at full rated current |
| Brass terminal screws |
| 0.05 in galvanized steel mounting strap |
| Stainless steel automatic self-grounding staple |
| Zinc plated steel mounting screws |
| Indoor dry unless protected by additional means |
