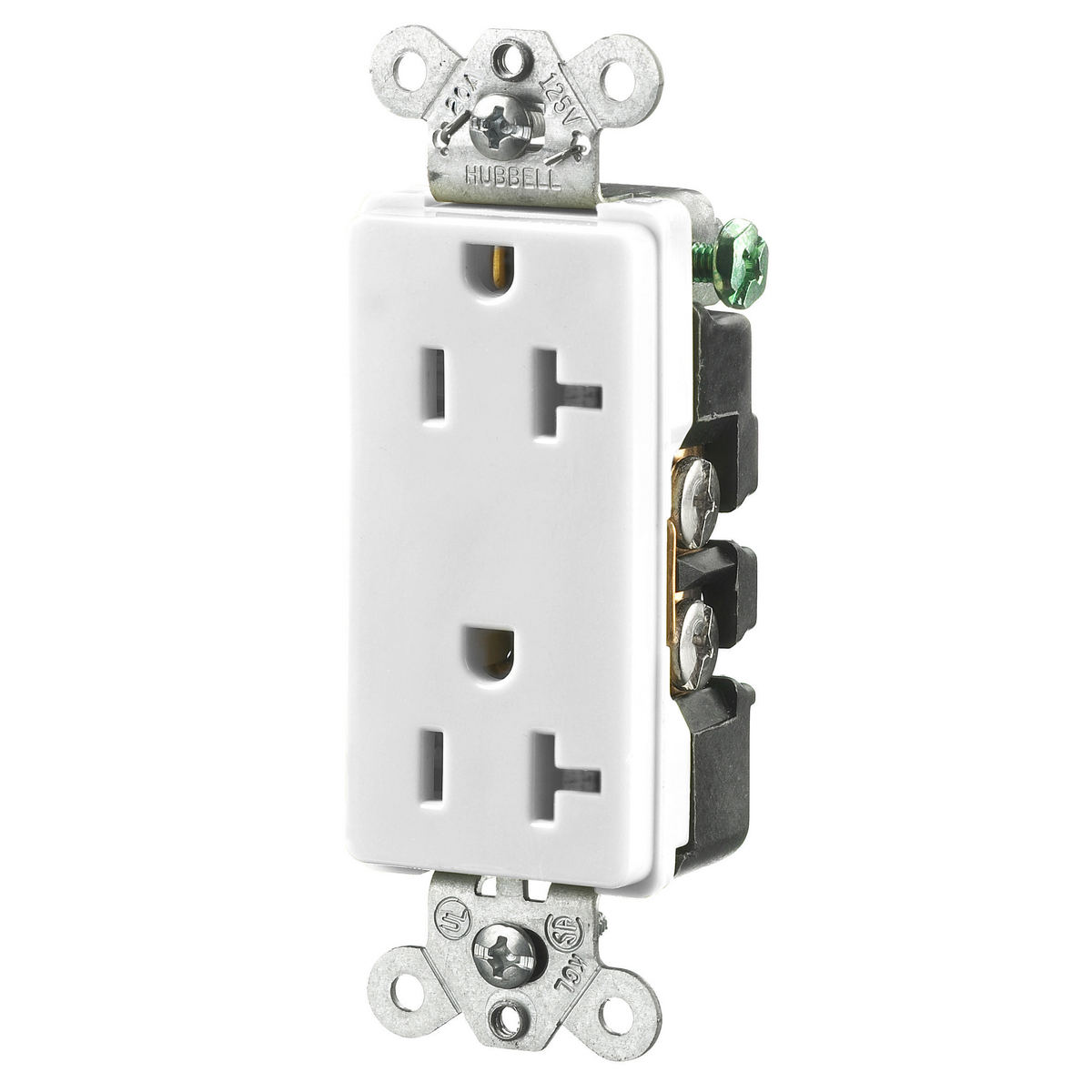

STYLE DUP RCPT, 20A 125V, 5-20R, WH
SKU26377
MFGR #HBL2162WA
Your Cost: $20.27/ea
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding,20A 125V, 5-20R, White, Single Pack
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding,20A 125V, 5-20R, White, Single Pack
Application Heavy Duty Style Line Decorator Duplex ARRA Compliant C Buy American Compliant C Catalog Number HBL2162WA Connection Back and Side Wired Screw Terminals Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in L x 1.36 in W x 1.03 in H Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Commercial/Industrial Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 1 hp Length 4.30 in Length [Metric] 10.9220 cm Material Thermoplastic Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size 3.28 in x 1.36 in x 1.03 in Standard Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498 File No. E2186CSA C22.2No. 42 File 285Federal Specification W-C-596UL 94-V-2UL 94V-0 Flammability RatingNEMA WD1/WD5/WD6 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Screw Type Standard Duplex UNSPSC 39121406 UPC 11 78358506052 UPC 12 783585060521 Wattage 2,500 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color White Number of Wires 3 Voltage Rating 125 V Heavy Duty Style Line Decorator Duplex Standard, Self Grounding Aesthetic Style Line® decorator design Triple wipe contacts Triple wipe contacts Nylon face and PBT base Brass contacts and terminal screws, plated brass wire clamp, brass ground contact, galvanized steel mounting strap, stainless steel automatic self-grounding clip Certified for current interrupting at full rated current Withstands 2000 VAC minimum dielectric voltage 12 to 10 AWG stranded or solid copper wire only Terminals identified in accordance with UL 498 and CSA
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Heavy Duty Style Line Decorator Duplex |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL2162WA |
| Connection | Back and Side Wired Screw Terminals |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in L x 1.36 in W x 1.03 in H |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Commercial/Industrial |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 1 hp |
| Length | 4.30 in |
| Length [Metric] | 10.9220 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 3.28 in x 1.36 in x 1.03 in |
| Standard | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498 File No. E2186CSA C22.2No. 42 File 285Federal Specification W-C-596UL 94-V-2UL 94V-0 Flammability RatingNEMA WD1/WD5/WD6 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired Screw |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358506052 |
| UPC 12 | 783585060521 |
| Wattage | 2,500 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Heavy Duty Style Line Decorator Duplex |
| Standard, Self Grounding |
| Aesthetic Style Line® decorator design |
| Triple wipe contacts |
| Triple wipe contacts |
| Nylon face and PBT base |
| Brass contacts and terminal screws, plated brass wire clamp, brass ground contact, galvanized steel mounting strap, stainless steel automatic self-grounding clip |
| Certified for current interrupting at full rated current |
| Withstands 2000 VAC minimum dielectric voltage |
| 12 to 10 AWG stranded or solid copper wire only |
| Terminals identified in accordance with UL 498 and CSA |
