Schneider Electric

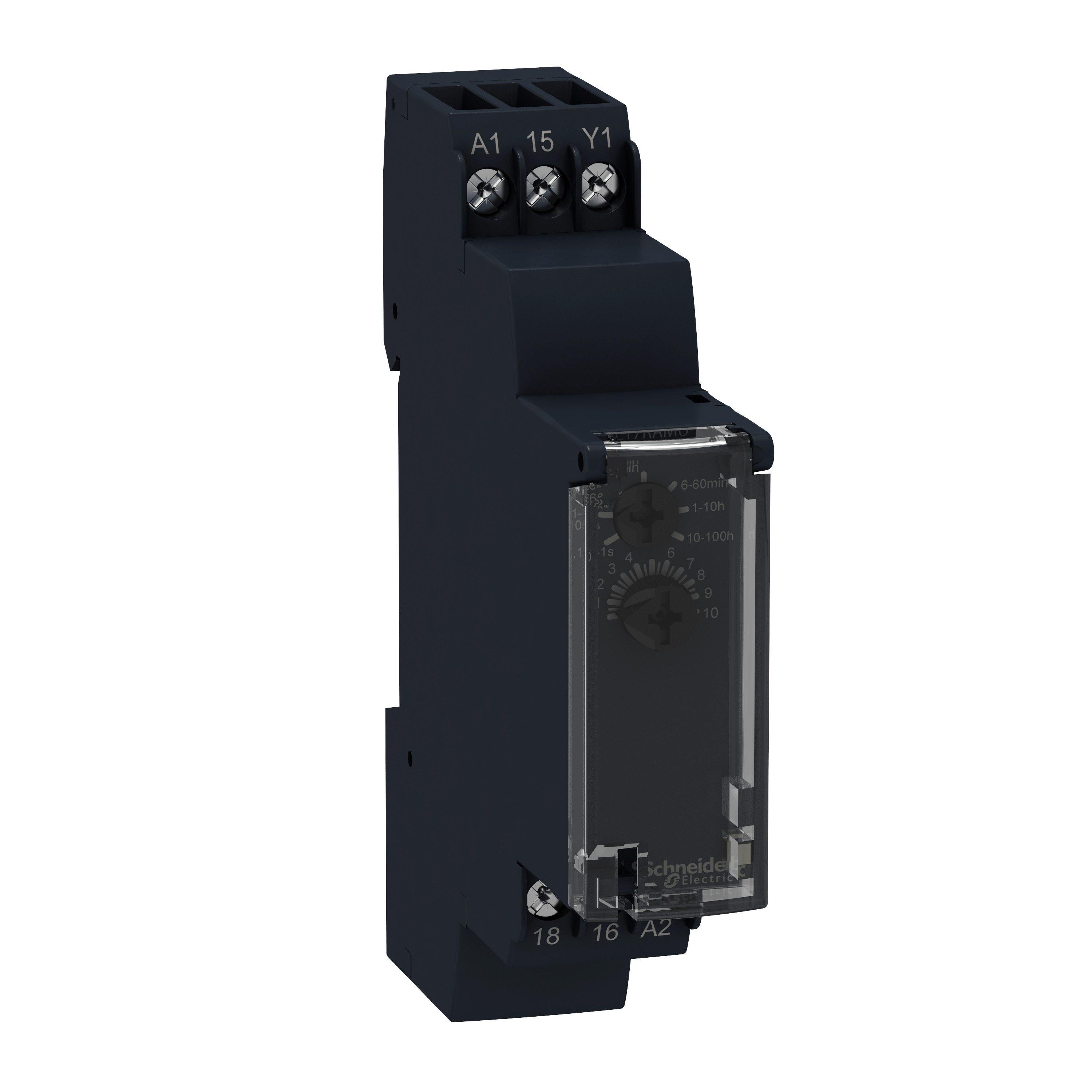

SQD RE17LHBM Pulse On-Delay Timer 2
Custom_Product_Images_Illustration
Schneider Electric
SQD RE17LHBM Pulse On-Delay Timer 2
SKU1048684
MFGR #RE17LHBM
Your Cost: $53.92/ea
Schneider Electric RE17LHBM Pulse On-Delay Timer 240V 7AMP,6...60 s-0.1...1 s-1...10 h-1...10 s-1...10 min-6...60 min-10...100 h,modular timing relay
Schneider Electric RE17LHBM Pulse On-Delay Timer 240V 7AMP,6...60 s-0.1...1 s-1...10 h-1...10 s-1...10 min-6...60 min-10...100 h,modular timing relay
Alternate Catalog Number RE17LHBM Amperage Rating 0.7 ARRA Compliant N Buy American Compliant N Catalog Number RE17LHBM Contact Rating 0.7 A Country of Origin ID Currency USD Dimensions 17.5 mm W x 90 mm H Display Type LED Electrical Connections Screw Enclosure Type IP20/IP40/IP50 EU RoHS Indicator Y Frequency Rating 50...60 HZ +/- 5 Gross Volume Per Pack 10.28 Gross Volume per Pack Metric 168.46 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 70.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 2.7000 in Height [Metric] 2.7000 cm Initiation SELECTOR SWITCH FRONT PANEL Item Group 22370 Length 9.5000 in Length [Metric] 9.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=180422197&lang=en-us Mounting 35 MM DIN RAIL EN/IEC 60715,ANY POSITION IN RELATION TO NORMAL VERTICAL MOUNTING PLANE Mounting Type DIN Rail Number Of Poles 1 Operating Cycles 10 Operating Temperature -20-60 A°C Operation Mode Interval Returnable N Size 0.69 in Standard CE Standards PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Temperature Rating -20 to 60 Timing Range 1...10 s;1...10 h;0.1...1 s;6...60 s;6...60 min;1...10 min;10...100 h Type Solid state;Modular timing relay UNSPSC 39121523 UPC 11 78590100290 UPC 12 785901002901 Width 8.0000 in Width [Metric] 8.0000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Contact Form SPDT Time Setting 0.1 sec to 100 hr Voltage Rating 24 to 240 IP20 (TERMINAL BLOCK) CONFORMING TO IEC 60529-IP40 (HOUSING) CONFORMING TO IEC 60529-IP50 (FRONT PANEL) CONFORMING TO IEC 60529
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | RE17LHBM |
| Amperage Rating | 0.7 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | RE17LHBM |
| Contact Rating | 0.7 A |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 17.5 mm W x 90 mm H |
| Display Type | LED |
| Electrical Connections | Screw |
| Enclosure Type | IP20/IP40/IP50 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50...60 HZ +/- 5 |
| Gross Volume Per Pack | 10.28 |
| Gross Volume per Pack Metric | 168.46 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 70.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 2.7000 in |
| Height [Metric] | 2.7000 cm |
| Initiation | SELECTOR SWITCH FRONT PANEL |
| Item Group | 22370 |
| Length | 9.5000 in |
| Length [Metric] | 9.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=180422197&lang=en-us |
| Mounting | 35 MM DIN RAIL EN/IEC 60715,ANY POSITION IN RELATION TO NORMAL VERTICAL MOUNTING PLANE |
| Mounting Type | DIN Rail |
| Number Of Poles | 1 |
| Operating Cycles | 10 |
| Operating Temperature | -20-60 A°C |
| Operation Mode | Interval |
| Returnable | N |
| Size | 0.69 in |
| Standard | CE |
| Standards | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Temperature Rating | -20 to 60 |
| Timing Range | 1...10 s;1...10 h;0.1...1 s;6...60 s;6...60 min;1...10 min;10...100 h |
| Type | Solid state;Modular timing relay |
| UNSPSC | 39121523 |
| UPC 11 | 78590100290 |
| UPC 12 | 785901002901 |
| Width | 8.0000 in |
| Width [Metric] | 8.0000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Contact Form | SPDT |
| Time Setting | 0.1 sec to 100 hr |
| Voltage Rating | 24 to 240 |
| IP20 (TERMINAL BLOCK) CONFORMING TO IEC 60529-IP40 (HOUSING) CONFORMING TO IEC 60529-IP50 (FRONT PANEL) CONFORMING TO IEC 60529 |
