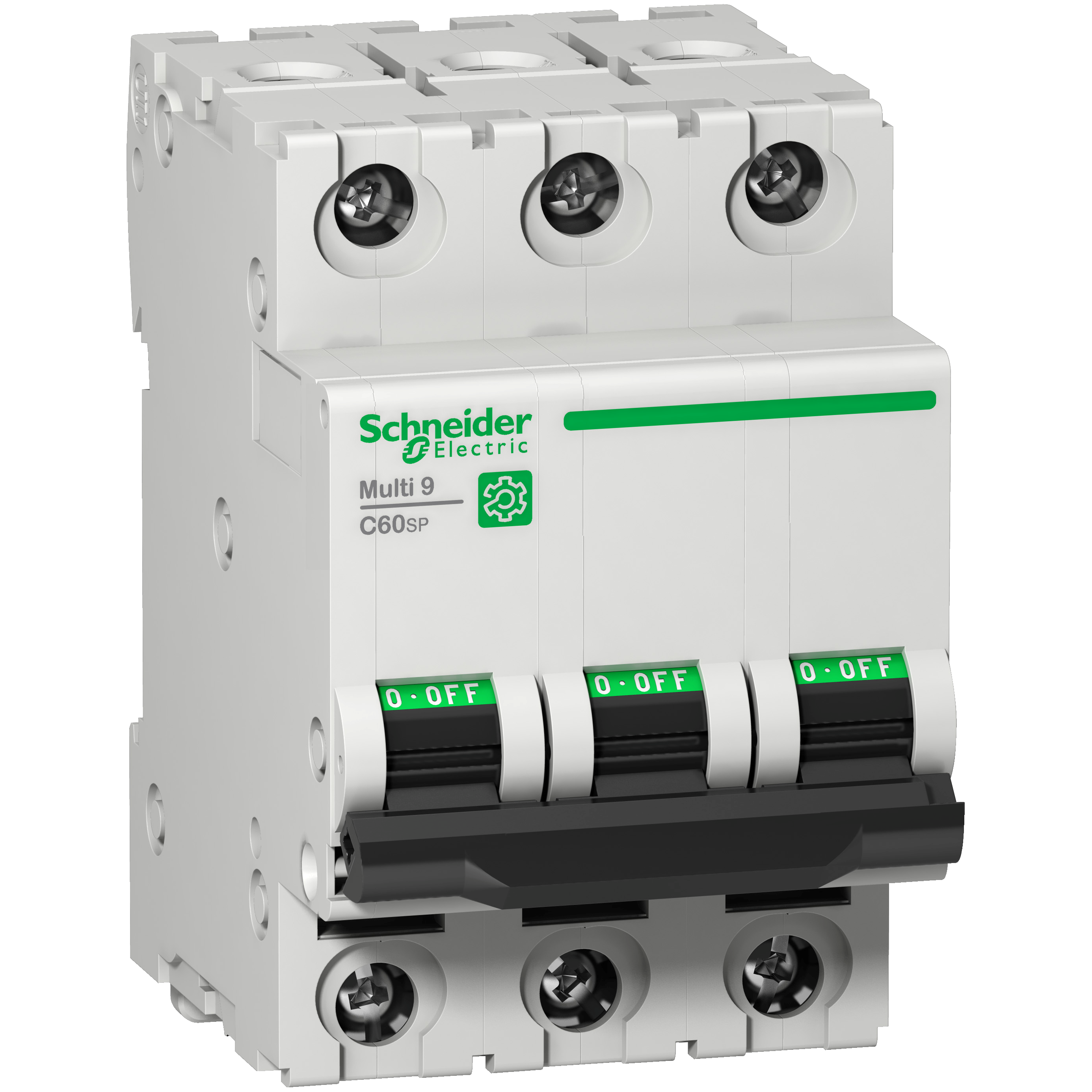

SQD M9F22313 Multi9 C60SP 3P C 13A MCB
SKU1080604
MFGR #M9F22313
Your Cost: $229.93/ea
List: Multi9 C60SP 3P C 13A MCB
Multi9 C60SP 3P C 13A MCB
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F22313 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F22313 Color Gray Connection Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible Connection Type Tunnel Country of Origin FR Currency USD Dimensions 3.19 in H x 2.13 in W x 2.83 in D Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 20.79 Gross Volume per Pack Metric 340.69 Gross Weight Per Pack 0.7500 lb Gross Weight per Pack Metric 338.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 5.4000 in Height [Metric] 5.4000 cm Item Group 00948 Length 8.5000 in Length [Metric] 8.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710783&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 3 Returnable Y Series C60SP Standard EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA Standards ARRA CompliantBuy American Act CompliantUL 1077UL RecognizedCCC CertifiedCSA C22.2 No. 235EN/IEC 60947-2GB 14048.2 Sub Brand C60SP;Multi 9 C60 Substitute Product Catalog Number M9A26924 Temperature Rating -22 to 158 °F Trip Range 8.5X In AC Type Multi-Standard UNSPSC 39121603 UPC 11 78590173870 UPC 12 785901738701 Width 7.5000 in Width [Metric] 7.5000 cm Wire Size 18 to 8 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 13 A Interrupt Rating 10 kA Trip Type Thermal-magnetic Voltage Rating 240/415/440 VAC Distribution ON/OFF indication Circuit protection against short circuit, overload currents Tripping and fault indication by the addition of auxiliaries
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F22313 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F22313 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible |
| Connection Type | Tunnel |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 3.19 in H x 2.13 in W x 2.83 in D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 20.79 |
| Gross Volume per Pack Metric | 340.69 |
| Gross Weight Per Pack | 0.7500 lb |
| Gross Weight per Pack Metric | 338.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 5.4000 in |
| Height [Metric] | 5.4000 cm |
| Item Group | 00948 |
| Length | 8.5000 in |
| Length [Metric] | 8.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710783&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 3 |
| Returnable | Y |
| Series | C60SP |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA |
| Standards | ARRA CompliantBuy American Act CompliantUL 1077UL RecognizedCCC CertifiedCSA C22.2 No. 235EN/IEC 60947-2GB 14048.2 |
| Sub Brand | C60SP;Multi 9 C60 |
| Substitute Product Catalog Number | M9A26924 |
| Temperature Rating | -22 to 158 °F |
| Trip Range | 8.5X In AC |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590173870 |
| UPC 12 | 785901738701 |
| Width | 7.5000 in |
| Width [Metric] | 7.5000 cm |
| Wire Size | 18 to 8 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 13 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal-magnetic |
| Voltage Rating | 240/415/440 VAC |
| Distribution |
| ON/OFF indication |
| Circuit protection against short circuit, overload currents |
| Tripping and fault indication by the addition of auxiliaries |
