Square D™

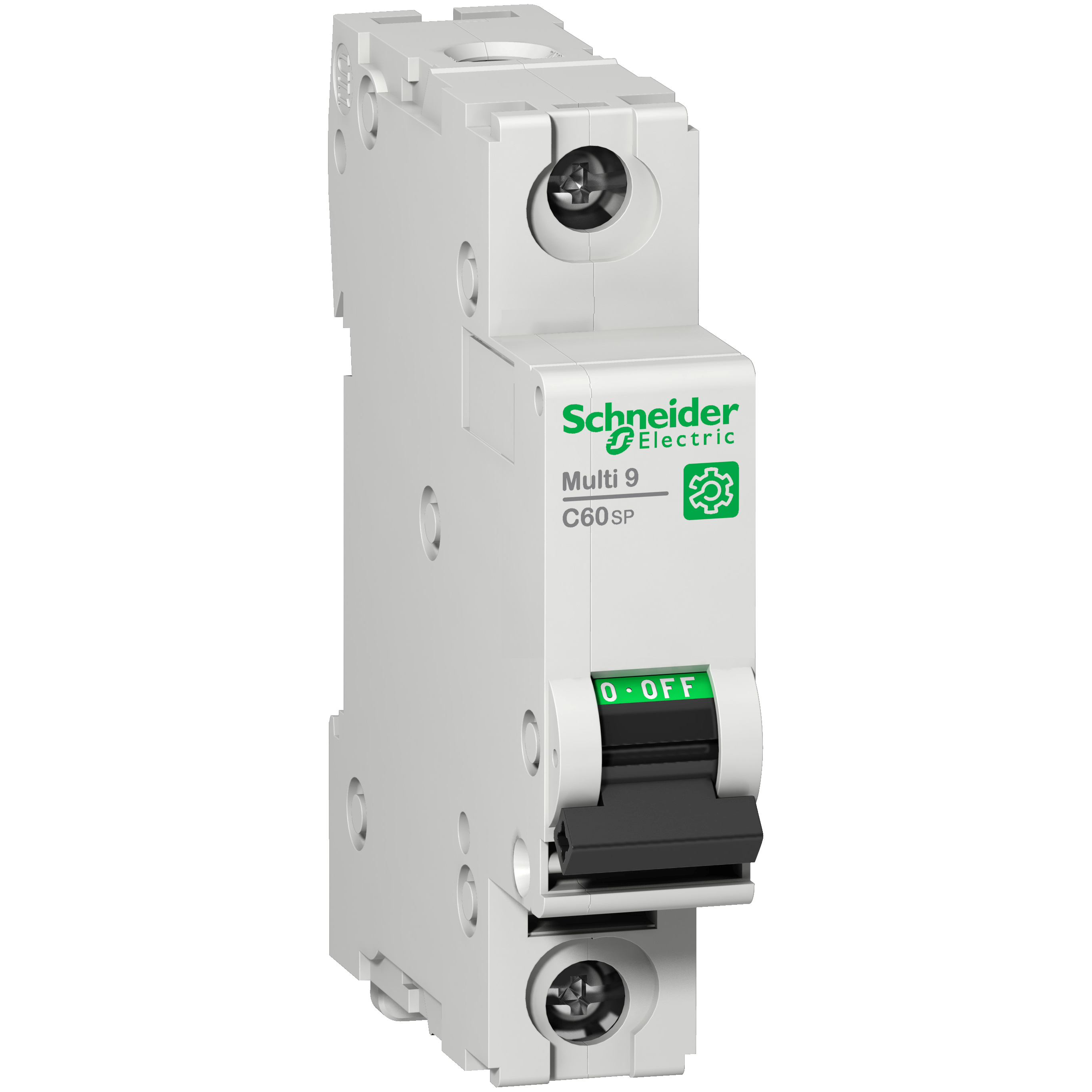

SQD M9F22110 Multi9 C60SP 1P C 10A MCB
Custom_Product_Images_Illustration
Square D™
SQD M9F22110 Multi9 C60SP 1P C 10A MCB
SKU1105042
MFGR #M9F22110
Your Cost: $64.38/ea
List: Multi9 C60SP 1P C 10A MCB
Multi9 C60SP 1P C 10A MCB
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F22110 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F22110 Color Gray Connection Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible Connection Type Tunnel Country of Origin US Currency USD Dimensions 3.19 in H x 0.71 in W x 2.83 in D Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 6.93 Gross Volume per Pack Metric 113.56 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 111.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 1.8000 in Height [Metric] 1.8000 cm Item Group 00948 Length 8.5000 in Length [Metric] 8.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710734&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 1 Returnable Y Series C60SP Standard EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA Standards ARRA CompliantBuy American Act CompliantUL 1077UL RecognizedCCC CertifiedCSA C22.2 No. 235EN/IEC 60947-2GB 14048.2 Sub Brand C60SP;Multi 9 C60 Substitute Product Catalog Number M9A26478 Temperature Rating -22 to 158 °F Trip Range 8.5X In AC/12X In DC Type Multi-Standard UNSPSC 39121603 UPC 11 78590171884 UPC 12 785901718840 Width 7.5000 in Width [Metric] 7.5000 cm Wire Size 18 to 8 AWG Cu Stock Status NORMALLY STOCKED Brand Square D™ Manufacturer Schneider Electric Amperage Rating 10 A Interrupt Rating 10 kA Trip Type THERMAL-MAGNETIC Voltage Rating 240/415 VAC/60 VDC Distribution ON/OFF indication Circuit protection against short circuit, overload currents Tripping and fault indication by the addition of auxiliaries
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F22110 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F22110 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible |
| Connection Type | Tunnel |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 3.19 in H x 0.71 in W x 2.83 in D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 6.93 |
| Gross Volume per Pack Metric | 113.56 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 111.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 1.8000 in |
| Height [Metric] | 1.8000 cm |
| Item Group | 00948 |
| Length | 8.5000 in |
| Length [Metric] | 8.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710734&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 1 |
| Returnable | Y |
| Series | C60SP |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA |
| Standards | ARRA CompliantBuy American Act CompliantUL 1077UL RecognizedCCC CertifiedCSA C22.2 No. 235EN/IEC 60947-2GB 14048.2 |
| Sub Brand | C60SP;Multi 9 C60 |
| Substitute Product Catalog Number | M9A26478 |
| Temperature Rating | -22 to 158 °F |
| Trip Range | 8.5X In AC/12X In DC |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590171884 |
| UPC 12 | 785901718840 |
| Width | 7.5000 in |
| Width [Metric] | 7.5000 cm |
| Wire Size | 18 to 8 AWG Cu |
| Stock Status | NORMALLY STOCKED |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 10 A |
| Interrupt Rating | 10 kA |
| Trip Type | THERMAL-MAGNETIC |
| Voltage Rating | 240/415 VAC/60 VDC |
| Distribution |
| ON/OFF indication |
| Circuit protection against short circuit, overload currents |
| Tripping and fault indication by the addition of auxiliaries |
