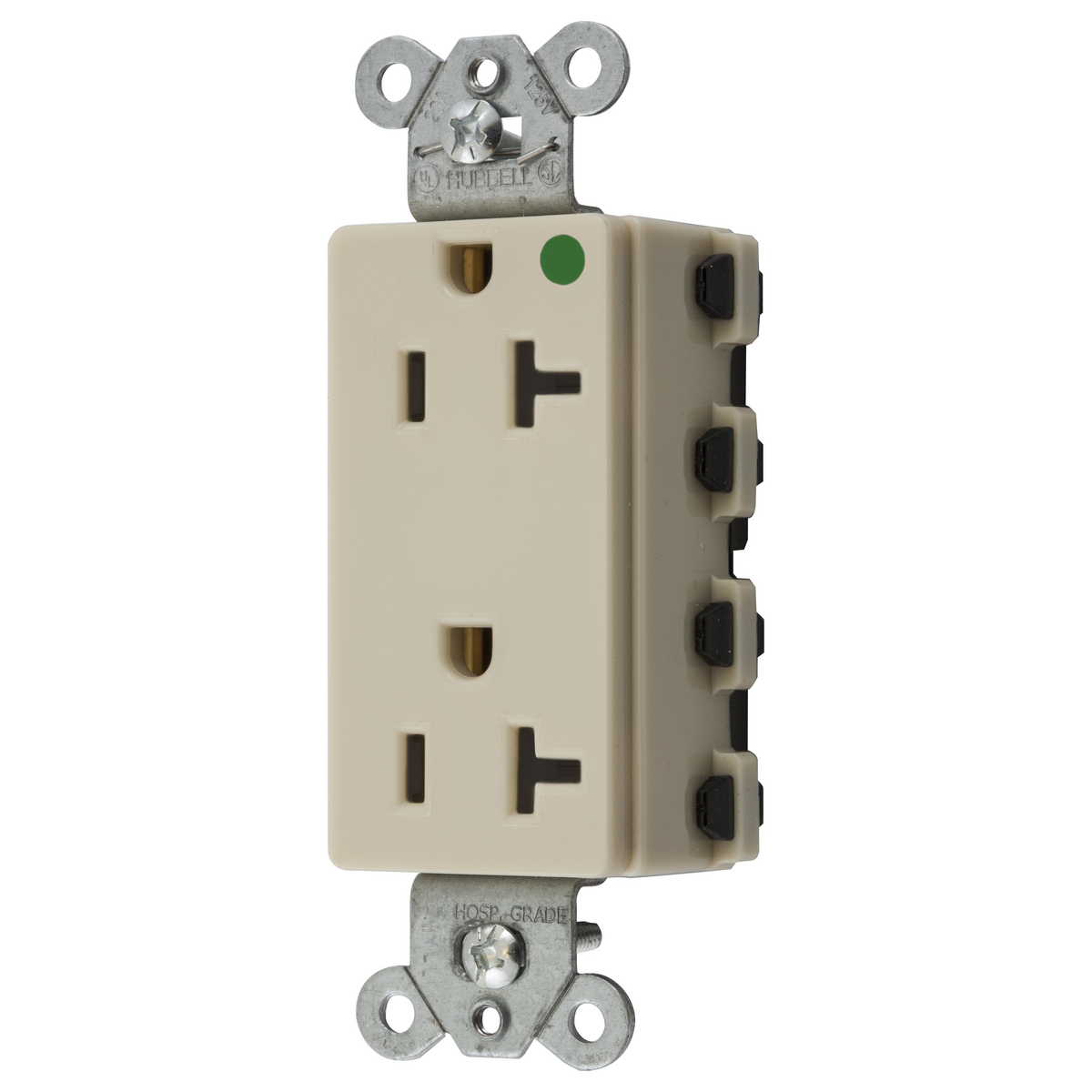

SNAP2CONNECT 20A/125V HG DECO, IVORY
Straight Blade Receptacles
744017
MFG #: SNAP2182IA
Hubbell Wiring Device-Kellems
21.81000
/ ea
SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
- Catalog 1 URL - Wiring_Device_Kellems_SNAP2152A_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - Wiring_Device_Kellems_2172_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_NHAVYL1K5SJEBT7R.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD2485_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - Wiring_Device_Kellems_SNAP2152A_Instruction_Sheet.pdf(Install Instructions URL)
- Line Drawing URL - 11456_H63EXPBCVGW7M4ZK.pdf(Line Drawing URL)
- Line Drawing URL - WDK_SNAP2182_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_6OH9QAIK087S5C14.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_SNAP2182IA_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_SNAP2182IA_M12035_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Hospital Grade |
| Quick Connect- SNAPConnect |
| Audible SNAP, indicates solid connection |
| Reduces installation time |
| Fully insulated design |
| Modular wiring system eliminates screw terminals |
| Speeds installation and trim out |
| Clear polycarbonate terminal housing to inspect contacts |
| Abuse resistant nylon for extra heavy use applications |
| Stainless steel auto ground |
| Self-grounding clip which makes installation easy |
| Withstands 2000 VAC minimum dielectric voltage |
| 5 deg C maximum continuous and -40 deg C (without impact) operating temperature rating |
