Siemens

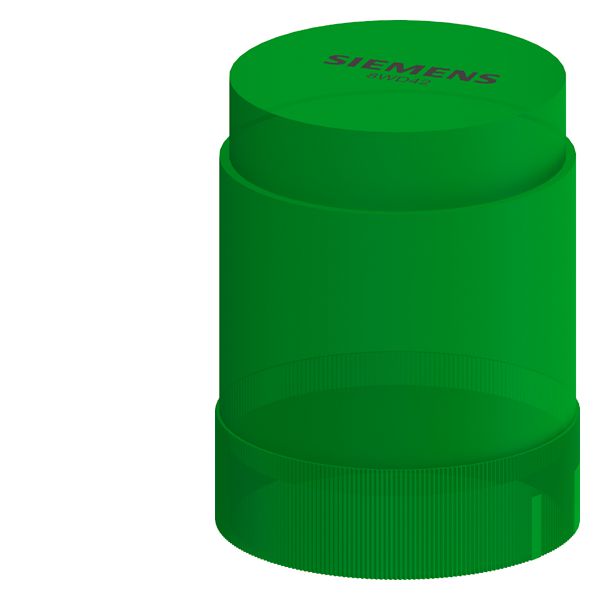

SIRIUS 8WD4220-5AC Signalling Column Steady Light, 24 VAC/VDC, LED Lamp, 50 mm Dia, Bayonet Mount, Green Lens

Custom_Product_Images_Illustration

Siemens

SKU330560

MFGR #8WD4220-5AC

Your Cost: $210.27/ea

List: ~~$359.00~~ /ea

SIEMENS 8WD4220-5AC 24V GRN LED SIG LT

: Alternate Catalog Number
8WD4220-5AC
Amperage Rating
30 mA
ARRA Compliant
C
Average Life
100000 hr
Buy American Compliant
C
Catalog Number
8WD4220-5AC
Country of Origin
DE
Currency
USD
Dimensions
67 mm H x 52 mm W
EU RoHS Indicator
C
Flash Type
Continuous
Gross Volume Per Pack
13.94
Gross Volume UOM
in
Gross Weight Per Pack
0.1000 lb
Gross Weight per Pack Metric
0.04
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8531809026
Height
2.1700 in
Height [Metric]
5.5118 cm
Length
2.9600 in
Length [Metric]
7.5184 cm
Light Output
1.62 cd
Material
Thermoplastic
Mounting
Bayonet
NEMA Rating
IP54
Returnable
Y
Standards
DIN EN 61346-2DIN EN 81346-2UL ListedCSA CertifiedEAC ApprovedC-TickCE CertifiedRoHS Compliant
Sub Brand
SIRIUS
Temperature Rating
-20 to 50 °C
Terminal Type
Screw
UNSPSC
39121534
UPC 11
75455448665
UPC 12
754554486659
Width
2.1700 in
Width [Metric]
5.5118 cm
Stock Status
NONSTOCK
Brand
Siemens
Manufacturer
Siemens
Color
Green
Diameter
50 mm
Lamp Type
LED
Mounting Type
Bayonet
Voltage Rating
24 VAC//VDC
: 3D Rendering
Brochure
Catalog
Seller Home Page
Spec Sheet
Spec Sheet
Spec Sheet
User Manual
: IP54 degree of protection

Up to 4-elements can be mounted

Alternate Catalog Number	8WD4220-5AC
Amperage Rating	30 mA
ARRA Compliant	C
Average Life	100000 hr
Buy American Compliant	C
Catalog Number	8WD4220-5AC
Country of Origin	DE
Currency	USD
Dimensions	67 mm H x 52 mm W
EU RoHS Indicator	C
Flash Type	Continuous
Gross Volume Per Pack	13.94
Gross Volume UOM	in
Gross Weight Per Pack	0.1000 lb
Gross Weight per Pack Metric	0.04
Gross Weight UOM Metric	kg
Harmonization Tariff Schedule Code	8531809026
Height	2.1700 in
Height [Metric]	5.5118 cm
Length	2.9600 in
Length [Metric]	7.5184 cm
Light Output	1.62 cd
Material	Thermoplastic
Mounting	Bayonet
NEMA Rating	IP54
Returnable	Y
Standards	DIN EN 61346-2DIN EN 81346-2UL ListedCSA CertifiedEAC ApprovedC-TickCE CertifiedRoHS Compliant
Sub Brand	SIRIUS
Temperature Rating	-20 to 50 °C
Terminal Type	Screw
UNSPSC	39121534
UPC 11	75455448665
UPC 12	754554486659
Width	2.1700 in
Width [Metric]	5.5118 cm
Stock Status	NONSTOCK
Brand	Siemens
Manufacturer	Siemens
Color	Green
Diameter	50 mm
Lamp Type	LED
Mounting Type	Bayonet
Voltage Rating	24 VAC//VDC
