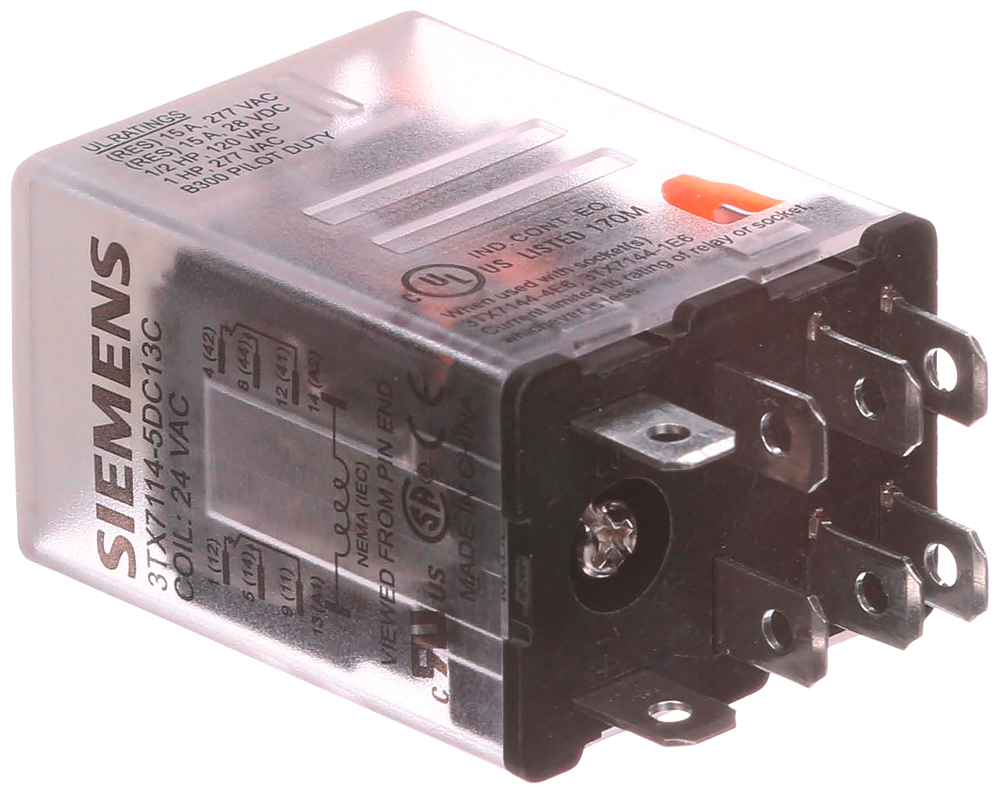

SIRIUS 3TX7114-5DC13C Miniature Socket Relay, DPDT Contact Form, 24 VAC Coil

Custom_Product_Images_Illustration

SKU620234

MFGR #3TX7114-5DC13C

Your Cost: $17.01/ea

List: ~~$25.90~~ /ea

SIEMENS 3TX7114-5DC13C RELAY DPDT 15A 24VAC

: Alternate Catalog Number
US2:3TX71145DC13C
ARRA Compliant
C
Base Type
Plug-In/Square
Buy American Compliant
C
Catalog Number
3TX7114-5DC13C
Contact Rating
12 A at 277/28 VAC, 15 A at 120 VAC
Country of Origin
US
Currency
USD
Dimensions
1.1 in H x 1.62 in W x 0.83 in D
Enclosure Type
IP40
EU RoHS Indicator
C
Gross Volume Per Pack
2.63
Gross Volume UOM
in
Gross Weight Per Pack
0.0100 lb
Gross Weight per Pack Metric
0.00
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8536490080
Height
0.9500 in
Height [Metric]
2.4130 cm
Length
2.0500 in
Length [Metric]
5.2070 cm
Mounting Type
Plug-In
Power Rating
0.9 W
Returnable
Y
Standards
UL ListedRoHS Compliant
Temperature Rating
-40 to 55 °C
Type
Basic Standard
UNSPSC
39122326
UPC 11
75455493843
UPC 12
754554938431
Width
1.3500 in
Width [Metric]
3.4290 cm
Stock Status
NONSTOCK
Brand
Siemens
Manufacturer
Siemens
Amperage Rating
15 A
Coil Voltage
24 VAC
Contact Form
DPDT
Number of Pins
8
: Catalog
Seller Home Page
Spec Sheet
User Manual
: Uses socket 3TX7144-1E6 or 3TX7144-4E6

12 A at 277 VAC, 15 A at 120 VAC, 12 A at 28 VAC contact rating

Alternate Catalog Number	US2:3TX71145DC13C
ARRA Compliant	C
Base Type	Plug-In/Square
Buy American Compliant	C
Catalog Number	3TX7114-5DC13C
Contact Rating	12 A at 277/28 VAC, 15 A at 120 VAC
Country of Origin	US
Currency	USD
Dimensions	1.1 in H x 1.62 in W x 0.83 in D
Enclosure Type	IP40
EU RoHS Indicator	C
Gross Volume Per Pack	2.63
Gross Volume UOM	in
Gross Weight Per Pack	0.0100 lb
Gross Weight per Pack Metric	0.00
Gross Weight UOM Metric	kg
Harmonization Tariff Schedule Code	8536490080
Height	0.9500 in
Height [Metric]	2.4130 cm
Length	2.0500 in
Length [Metric]	5.2070 cm
Mounting Type	Plug-In
Power Rating	0.9 W
Returnable	Y
Standards	UL ListedRoHS Compliant
Temperature Rating	-40 to 55 °C
Type	Basic Standard
UNSPSC	39122326
UPC 11	75455493843
UPC 12	754554938431
Width	1.3500 in
Width [Metric]	3.4290 cm
Stock Status	NONSTOCK
Brand	Siemens
Manufacturer	Siemens
Amperage Rating	15 A
Coil Voltage	24 VAC
Contact Form	DPDT
Number of Pins	8
