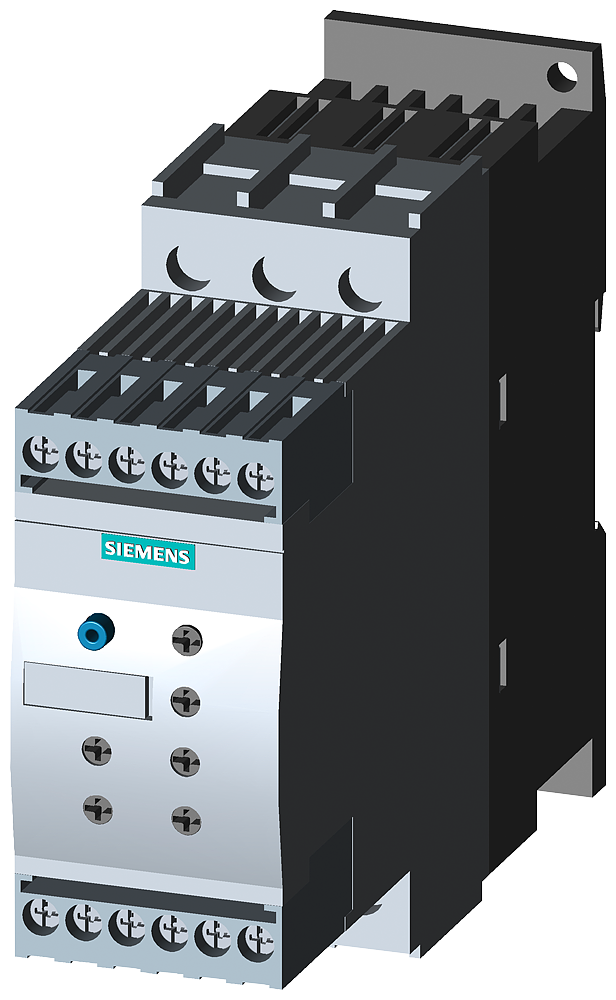

SIRIUS 3RW40271BB04 Soft Starter, 24 VAC/VDC, 3-Poles, IP20
Custom_Product_Images_Illustration
SIRIUS 3RW40271BB04 Soft Starter, 24 VAC/VDC, 3-Poles, IP20
SKU507367
MFGR #3RW40271BB04
Your Cost: $1,410.00/ea
List: SIEMENS 3RW40271BB04 SOFTSTART 29A 7.5/7.5/20HP 24V SCRW
SIEMENS 3RW40271BB04 SOFTSTART 29A 7.5/7.5/20HP 24V SCRW
Alternate Catalog Number 3RW4027-1BB04 Amperage Rating 32/29 A ARRA Compliant C Auxiliary Contact Rating 2NO-1CO Brand Siemens Buy American Compliant C Catalog Number 3RW40271BB04 Coil Voltage 24 VAC//VDC Connection Type Screw Country of Origin CZ Currency USD Dimensions 125 mm H x 45 mm W x 155 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 858.33 Gross Volume UOM in Gross Weight Per Pack 1.5550 lb Gross Weight per Pack Metric 0.70 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109170 Height 7.2000 in Height [Metric] 18.2880 cm Length 7.8000 in Length [Metric] 19.8120 cm Manufacturer Siemens Motor Power 7-1/2 hp, 20 hp Number Of Poles 3 Operating Temperature -25 to 60 °C Overload Relay Electronic Phase 3 pH Reset Type Automatic/Manual/Remote Returnable Y Standards RoHS CompliantUL ListedCE CertifiedCSA CertifiedEAC ApprovedCCC CertifiedC-TickATEXLloyd's RegisteredPRS Certified Stock Status NONSTOCK Timing 0 to 20 s UNSPSC 39121521 UPC 11 75455495858 UPC 12 754554958583 Voltage Rating 200 to 460 VAC Wattage 15 kW Width 2.6000 in Width [Metric] 6.6040 cm 7-1/2 hp at 220/230 VAC, 20 hp at 460/480 VAC This not only saves space in the control cabinet and on the standard mounting rail but also does away completely with the wiring work needed for wye-delta starters This is notable in particular for higher motor ratings which are only rarely available as fully wired solutions Compact dimensions, short start up times, easy wiring and fast commissioning make themselves felt as clear-cut cost advantages The bypass contacts of these softstarters are protected during operation by an integrated solid state arc quenching system The new series of devices comes with the polarity balancing control method, which is designed to prevent direct current components in 2-phase controlled softstarters
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RW4027-1BB04 |
| Amperage Rating | 32/29 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 2NO-1CO |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RW40271BB04 |
| Coil Voltage | 24 VAC//VDC |
| Connection Type | Screw |
| Country of Origin | CZ |
| Currency | USD |
| Dimensions | 125 mm H x 45 mm W x 155 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 858.33 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.5550 lb |
| Gross Weight per Pack Metric | 0.70 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 7.2000 in |
| Height [Metric] | 18.2880 cm |
| Length | 7.8000 in |
| Length [Metric] | 19.8120 cm |
| Manufacturer | Siemens |
| Motor Power | 7-1/2 hp, 20 hp |
| Number Of Poles | 3 |
| Operating Temperature | -25 to 60 °C |
| Overload Relay | Electronic |
| Phase | 3 pH |
| Reset Type | Automatic/Manual/Remote |
| Returnable | Y |
| Standards | RoHS CompliantUL ListedCE CertifiedCSA CertifiedEAC ApprovedCCC CertifiedC-TickATEXLloyd's RegisteredPRS Certified |
| Stock Status | NONSTOCK |
| Timing | 0 to 20 s |
| UNSPSC | 39121521 |
| UPC 11 | 75455495858 |
| UPC 12 | 754554958583 |
| Voltage Rating | 200 to 460 VAC |
| Wattage | 15 kW |
| Width | 2.6000 in |
| Width [Metric] | 6.6040 cm |
| 7-1/2 hp at 220/230 VAC, 20 hp at 460/480 VAC |
| This not only saves space in the control cabinet and on the standard mounting rail but also does away completely with the wiring work needed for wye-delta starters |
| This is notable in particular for higher motor ratings which are only rarely available as fully wired solutions |
| Compact dimensions, short start up times, easy wiring and fast commissioning make themselves felt as clear-cut cost advantages |
| The bypass contacts of these softstarters are protected during operation by an integrated solid state arc quenching system |
| The new series of devices comes with the polarity balancing control method, which is designed to prevent direct current components in 2-phase controlled softstarters |
