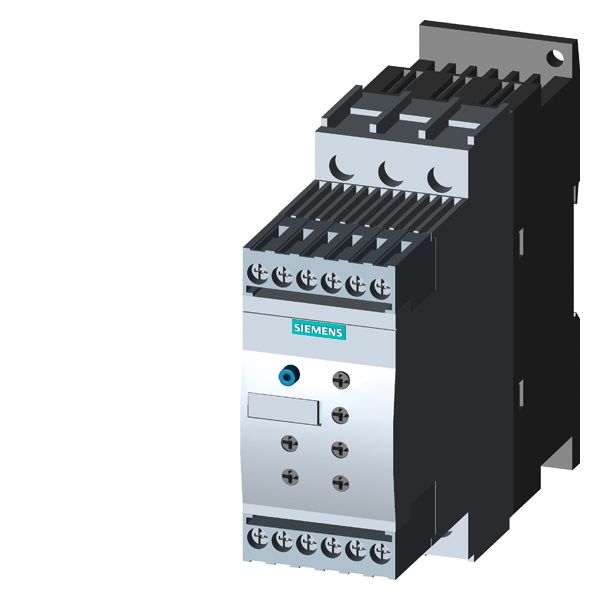

SIRIUS 3RW4026-1BB14 Soft Starter 110/230 VAC/VDC 3-Poles IP20
Custom_Product_Images_Illustration
SIRIUS 3RW4026-1BB14 Soft Starter 110/230 VAC/VDC 3-Poles IP20
SKU513545
MFGR #3RW4026-1BB14
$/ea
SIEMENS 3RW4026-1BB14 SIRIUS SOFT STARTER S0
SIEMENS 3RW4026-1BB14 SIRIUS SOFT STARTER S0
Alternate Catalog Number 3RW4026-1BB14 Amperage Rating 25 A ARRA Compliant C Auxiliary Contact Rating 2NO-1CO Brand Siemens Buy American Compliant C Catalog Number 3RW4026-1BB14 Coil Voltage 110 to 230 VAC//VDC Connection Type Threaded Country of Origin CZ Currency USD Dimensions 125 mm H x 45 mm W x 155 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50 to 60 Hz Gross Volume Per Pack 100.42 Gross Volume UOM in Gross Weight Per Pack 1.7000 lb Gross Weight per Pack Metric 0.77 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109170 Height 7.1300 in Height [Metric] 18.1102 cm Length 6.1500 in Length [Metric] 15.6210 cm Manufacturer Siemens Motor Power 20 hp Number Of Poles 3 Operating Temperature -25 to 60 °C Overload Relay Electronic Phase 3 pH Reset Type Automatic/Manual/Remote Returnable Y Standards ARRA, Buy American Act and RoHS Compliant, UL Listed, CCC, CE, CSA, C-Tick Certified Stock Status NONSTOCK Timing 0 to 20 UNSPSC 39121521 UPC 11 75455495617 UPC 12 754554956176 Voltage Rating 200 to 480 VAC Wattage 11 kW Width 2.2900 in Width [Metric] 5.8166 cm The space required by the compact SIRIUS 3RW40 softstarter is often only about one third of that required by a contactor assembly for wye-delta starting of comparable rating This not only saves space in the control cabinet and on the standard mounting rail but also does away completely with the wiring work needed for wye-delta starters This is notable in particular for higher motor ratings which are only rarely available as fully wired solutions Compact dimensions, short start up times, easy wiring and fast commissioning make themselves felt as clear-cut cost advantages The bypass contacts of these softstarters are protected during operation by an integrated solid state arc quenching system The new series of devices comes with the polarity balancing control method, which is designed to prevent direct current components in 2-phase controlled softstarters
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RW4026-1BB14 |
| Amperage Rating | 25 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 2NO-1CO |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RW4026-1BB14 |
| Coil Voltage | 110 to 230 VAC//VDC |
| Connection Type | Threaded |
| Country of Origin | CZ |
| Currency | USD |
| Dimensions | 125 mm H x 45 mm W x 155 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50 to 60 Hz |
| Gross Volume Per Pack | 100.42 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.7000 lb |
| Gross Weight per Pack Metric | 0.77 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 7.1300 in |
| Height [Metric] | 18.1102 cm |
| Length | 6.1500 in |
| Length [Metric] | 15.6210 cm |
| Manufacturer | Siemens |
| Motor Power | 20 hp |
| Number Of Poles | 3 |
| Operating Temperature | -25 to 60 °C |
| Overload Relay | Electronic |
| Phase | 3 pH |
| Reset Type | Automatic/Manual/Remote |
| Returnable | Y |
| Standards | ARRA, Buy American Act and RoHS Compliant, UL Listed, CCC, CE, CSA, C-Tick Certified |
| Stock Status | NONSTOCK |
| Timing | 0 to 20 |
| UNSPSC | 39121521 |
| UPC 11 | 75455495617 |
| UPC 12 | 754554956176 |
| Voltage Rating | 200 to 480 VAC |
| Wattage | 11 kW |
| Width | 2.2900 in |
| Width [Metric] | 5.8166 cm |
| The space required by the compact SIRIUS 3RW40 softstarter is often only about one third of that required by a contactor assembly for wye-delta starting of comparable rating |
| This not only saves space in the control cabinet and on the standard mounting rail but also does away completely with the wiring work needed for wye-delta starters |
| This is notable in particular for higher motor ratings which are only rarely available as fully wired solutions |
| Compact dimensions, short start up times, easy wiring and fast commissioning make themselves felt as clear-cut cost advantages |
| The bypass contacts of these softstarters are protected during operation by an integrated solid state arc quenching system |
| The new series of devices comes with the polarity balancing control method, which is designed to prevent direct current components in 2-phase controlled softstarters |
